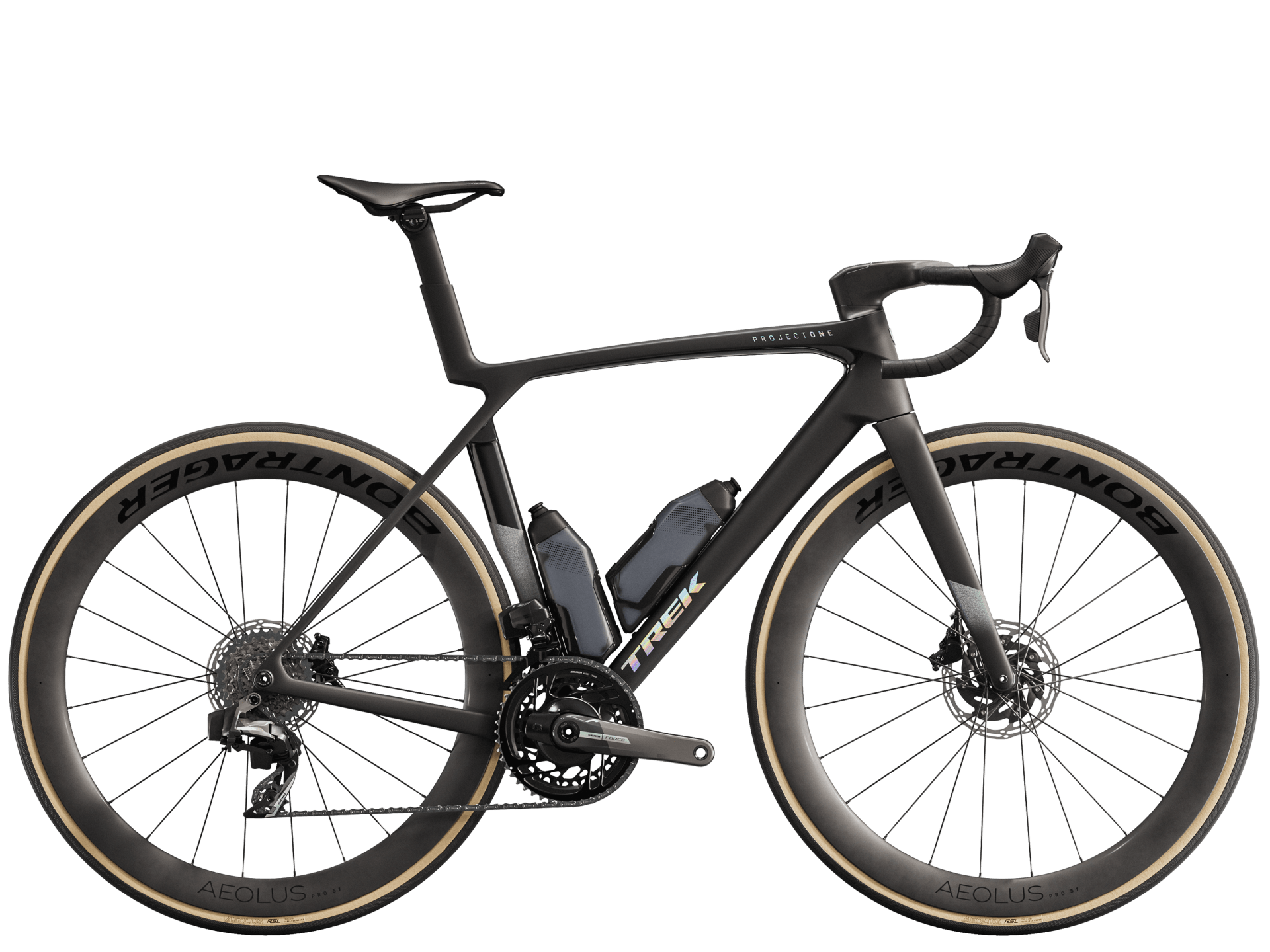

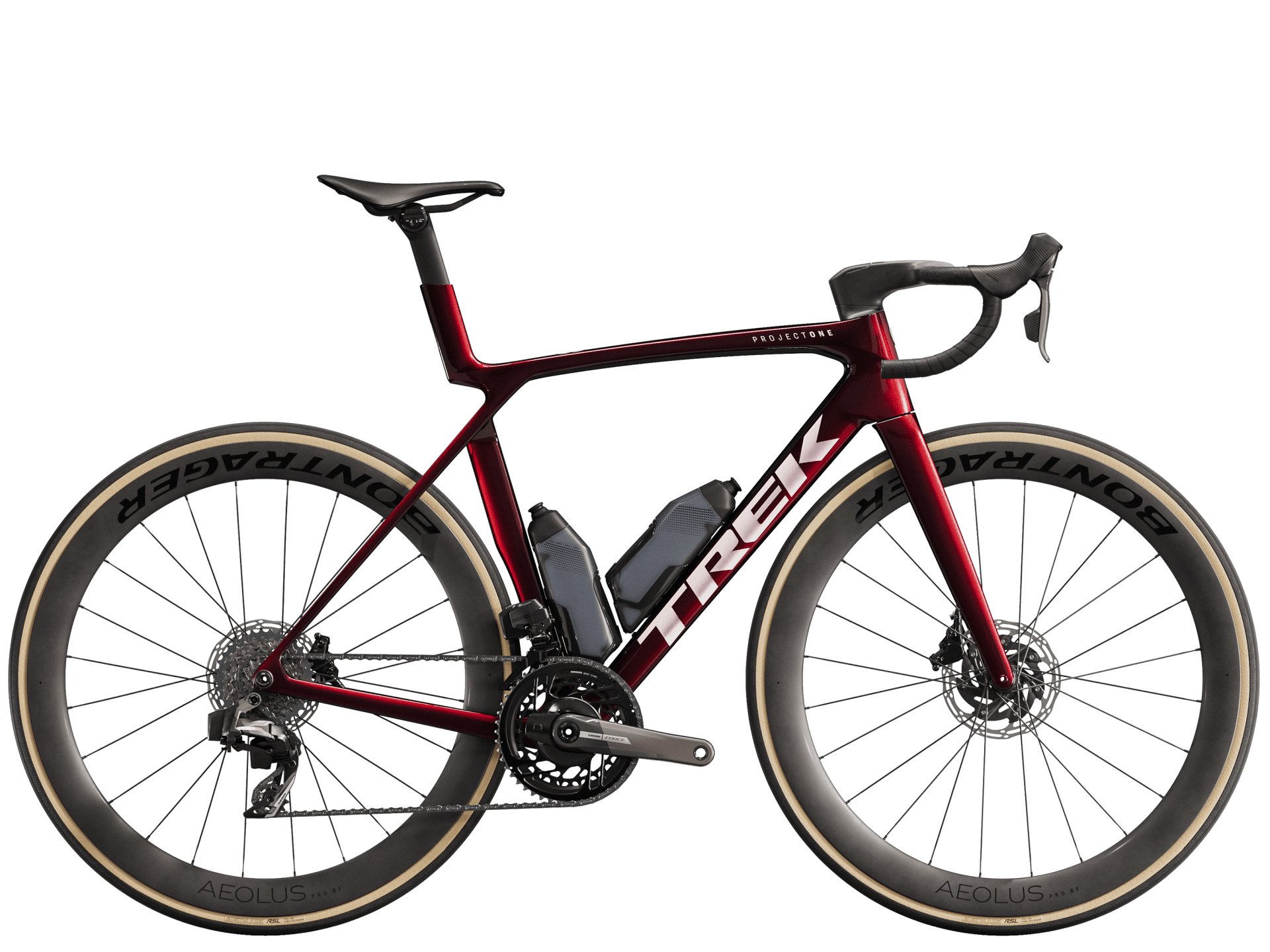

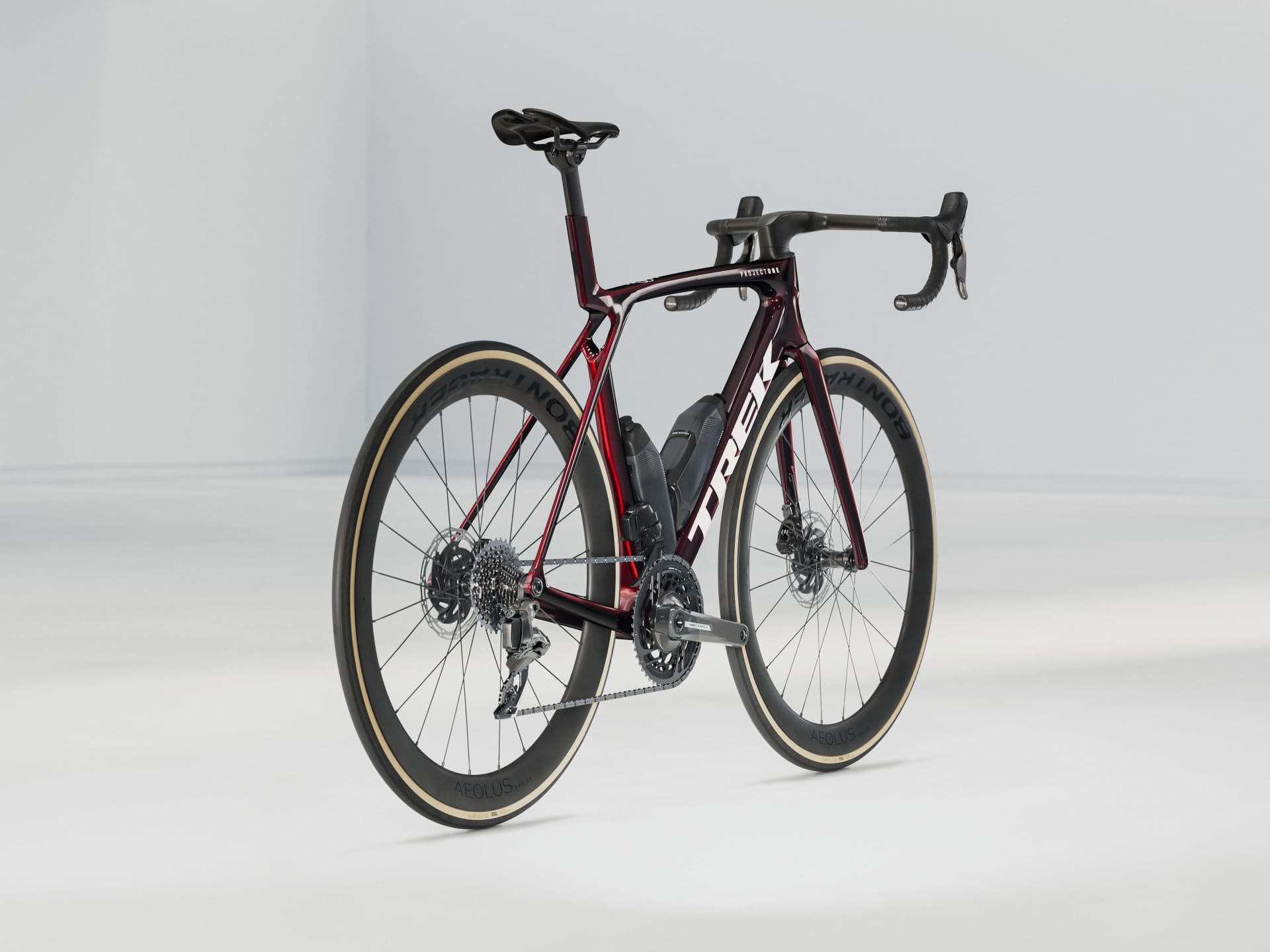

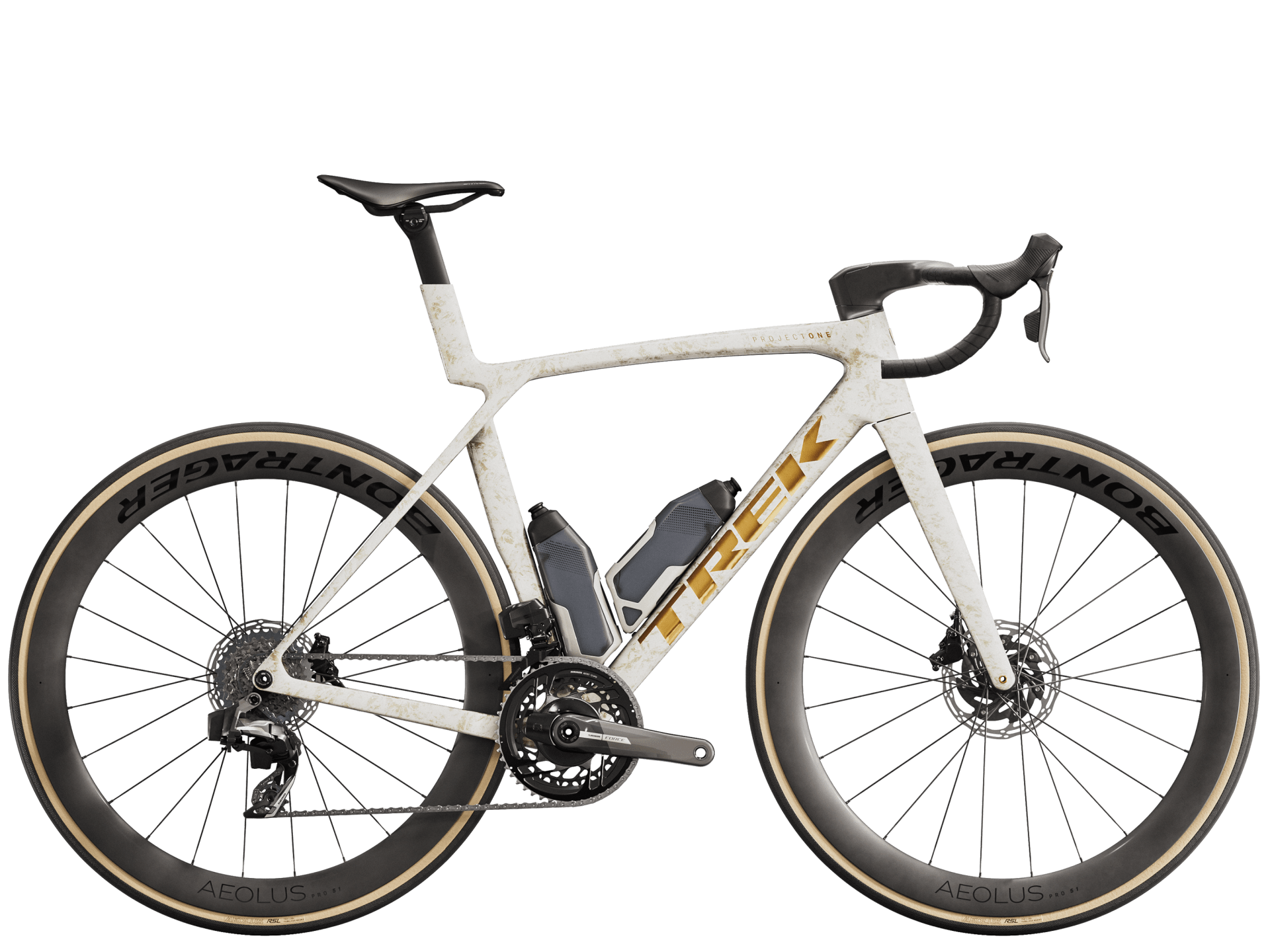

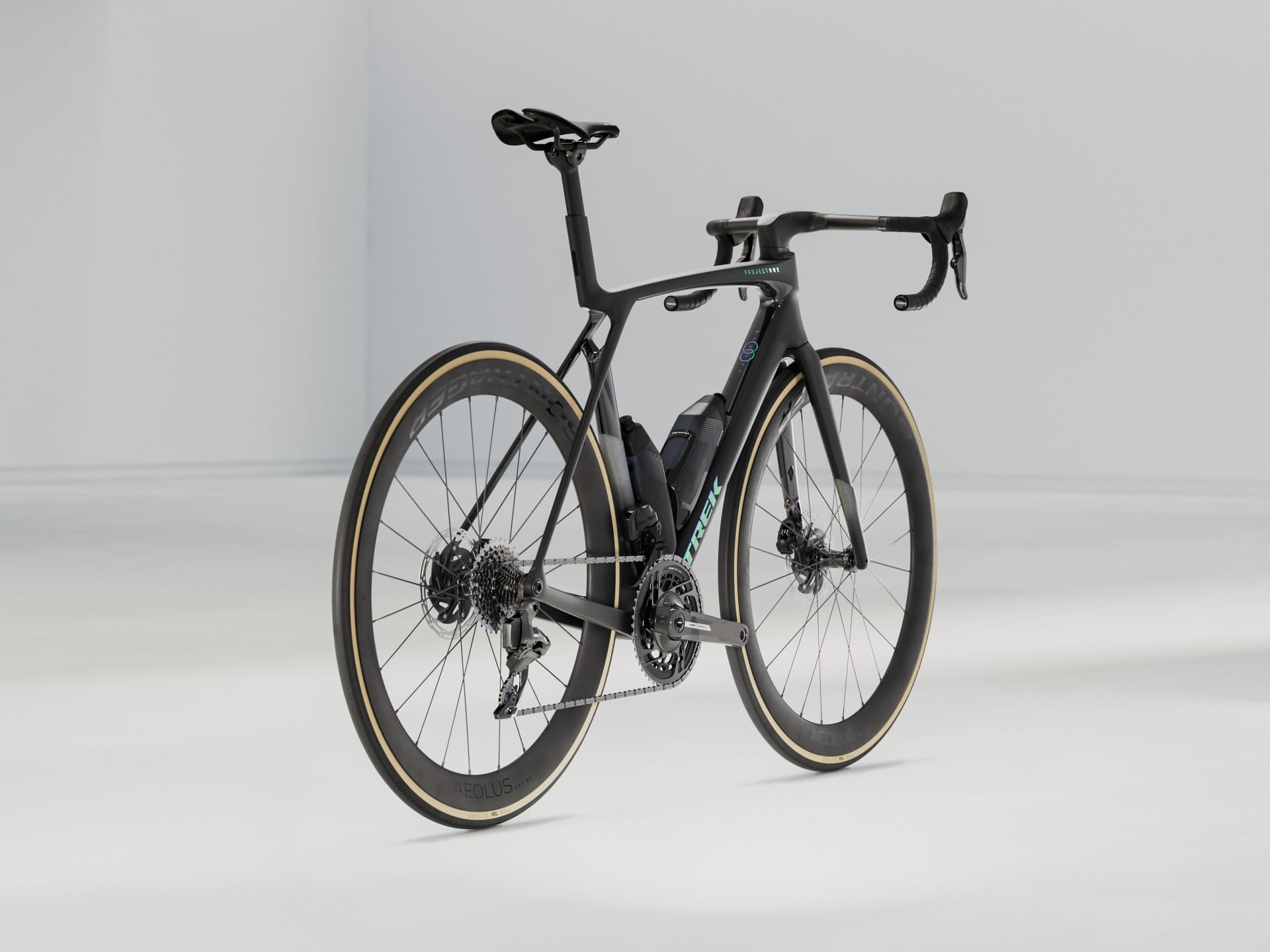

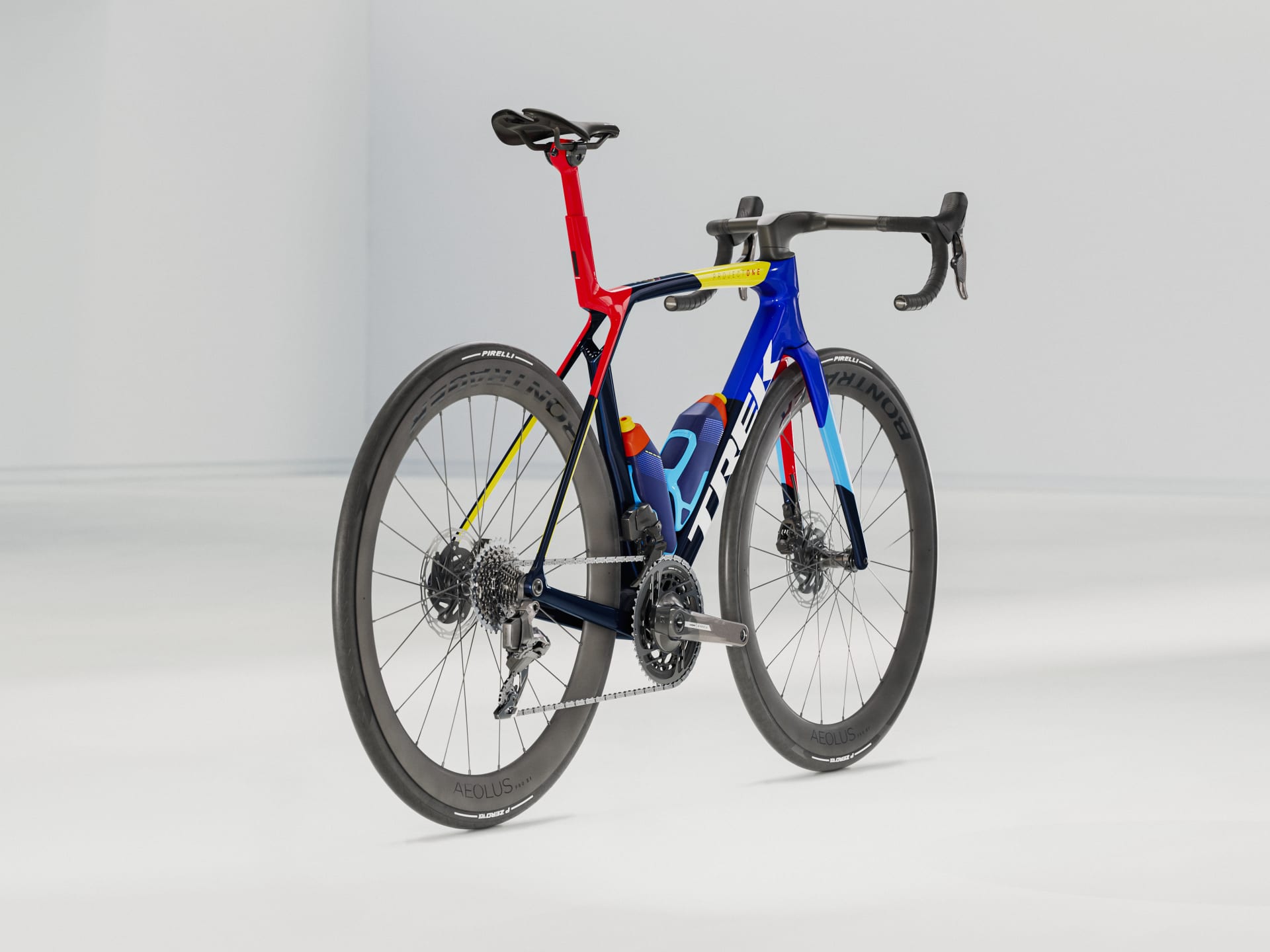

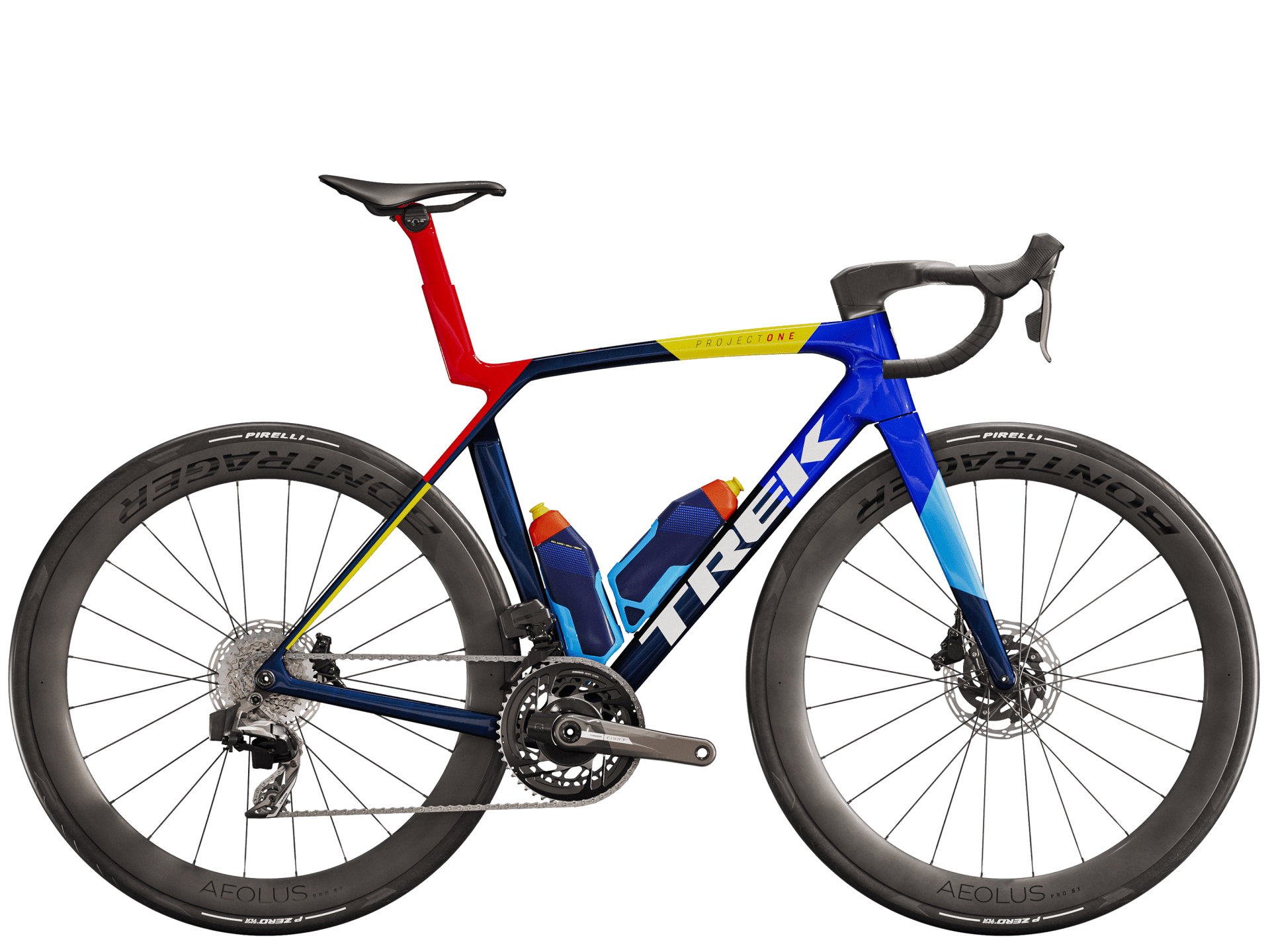

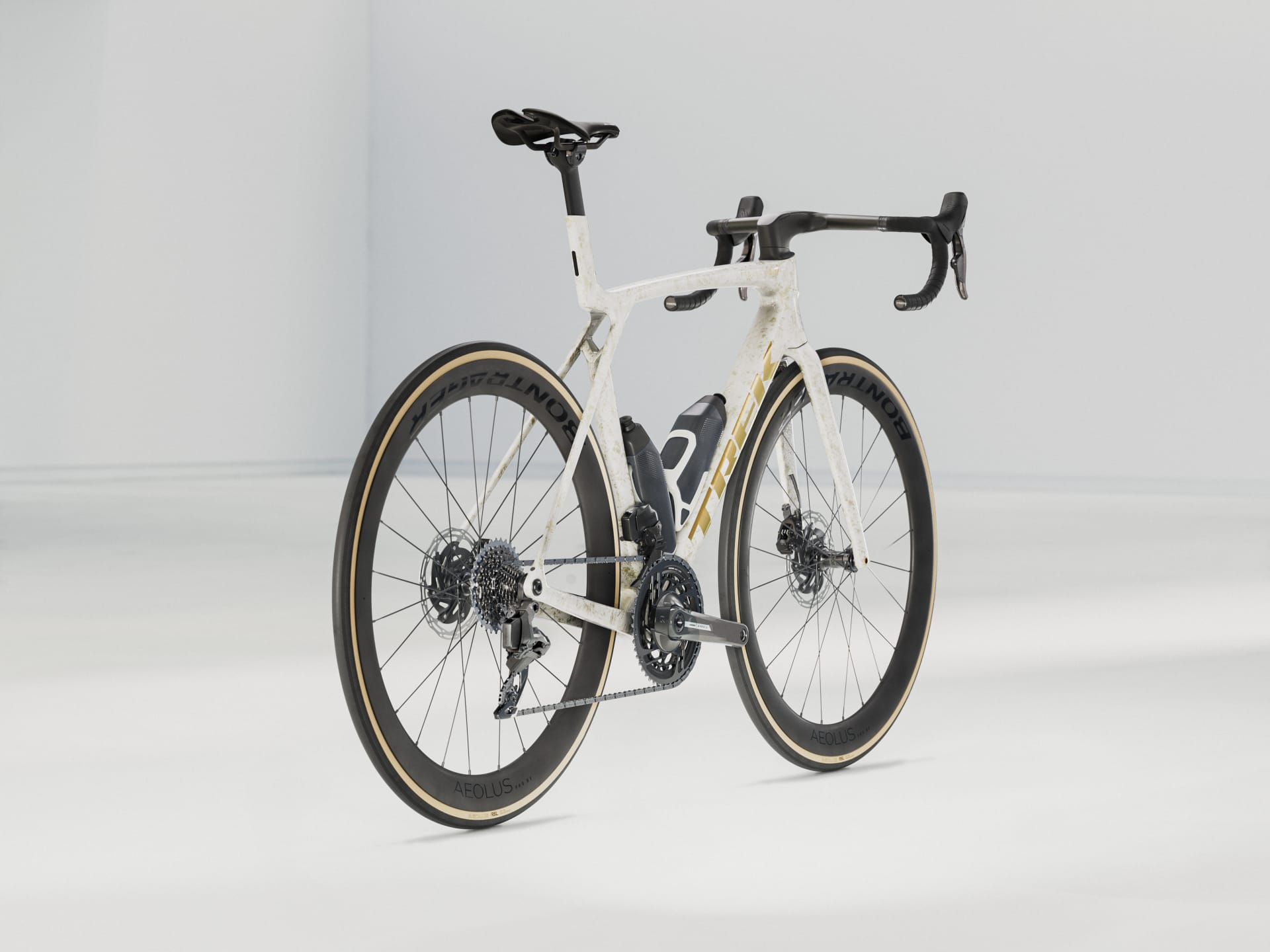

TREK Madone SLR 7 AXS Gen 8

Mô tả
Chính sách
Đánh giá

Madone SLR 7 AXS Gen 8 là một chiếc xe đạp đường trường siêu nhẹ và siêu nhẹ được thiết kế để đua. Khung Carbon 900 Series OCLV của nó không chỉ mang tính khí động học mà còn siêu nhẹ để leo núi. Công nghệ khung IsoFlow nhẹ có nghĩa là Madone không hy sinh sự thoải mái để lấy tốc độ. Để mang đến cho bạn mọi lợi thế về khí động học, Madone SLR đi kèm với Chai và lồng RSL Aero giúp giảm lực cản hơn nữa. Phiên bản này sẵn sàng giành chiến thắng với hệ thống truyền động SRAM Force AXS D2 với đồng hồ đo công suất, bánh xe carbon và thanh/thân carbon nguyên khối Trek Aero RSL.

THÔNG SỐ KỸ THUẬT

*Please note – spec applies to all sizes unless listed separately

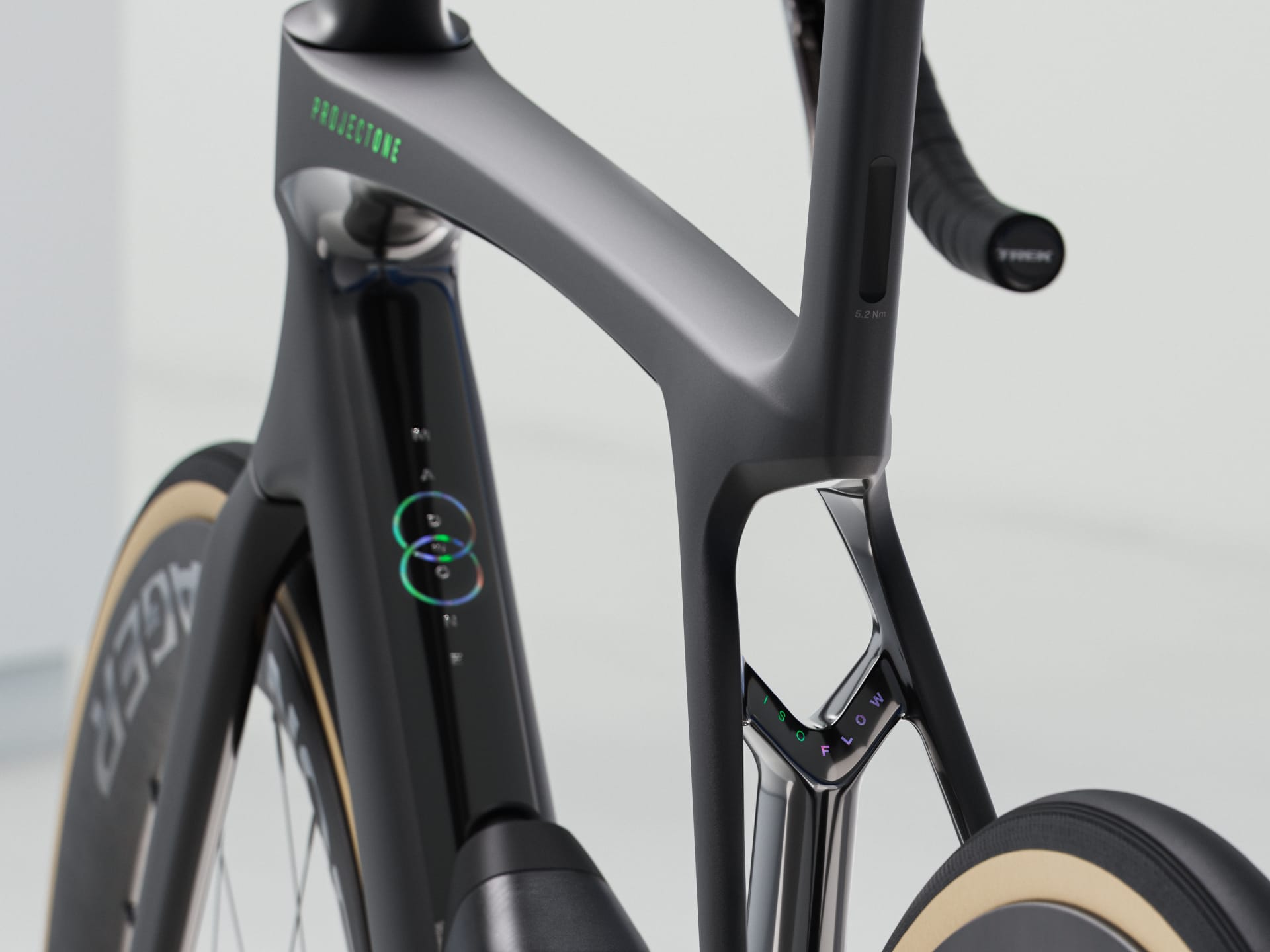

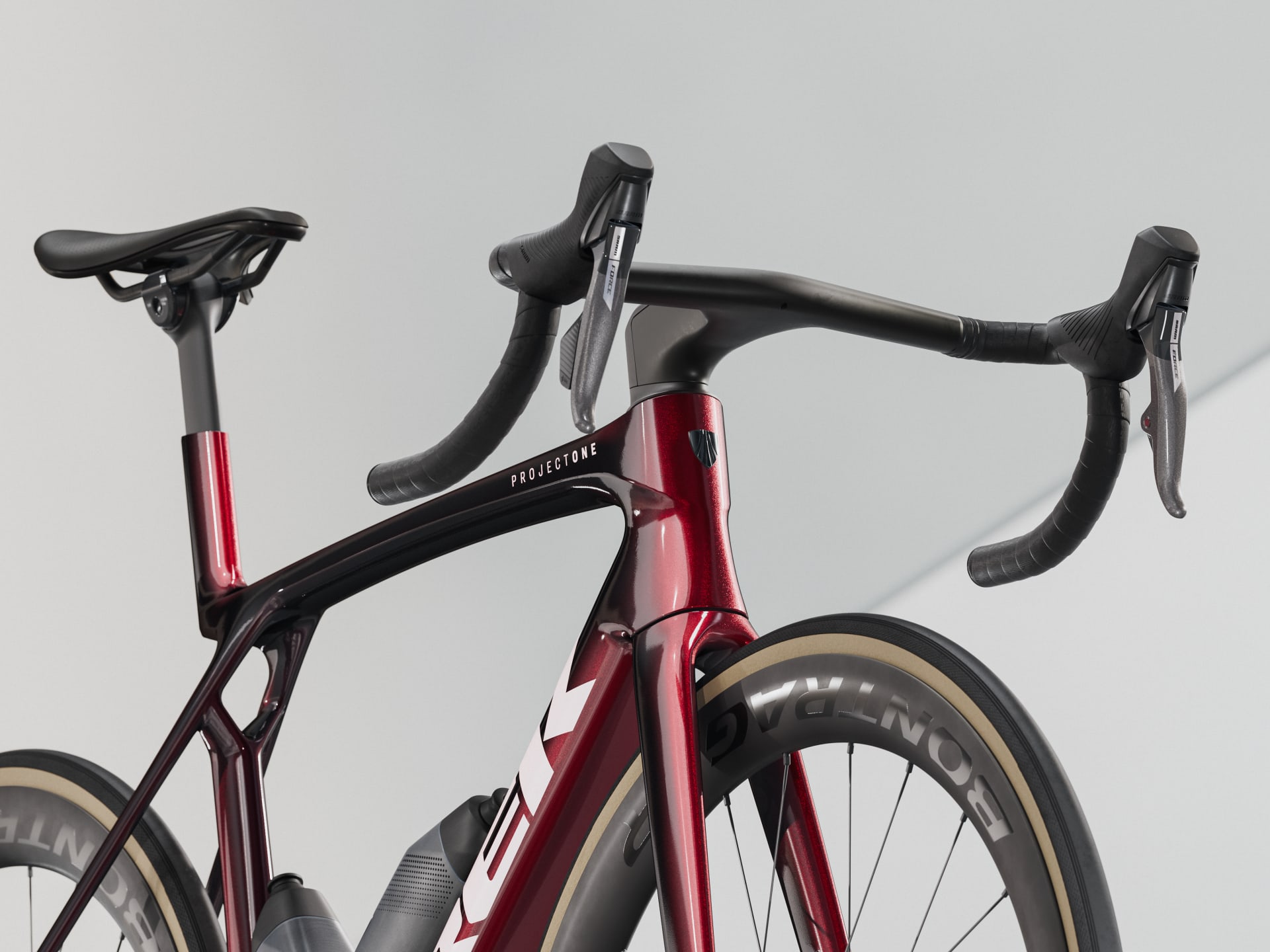

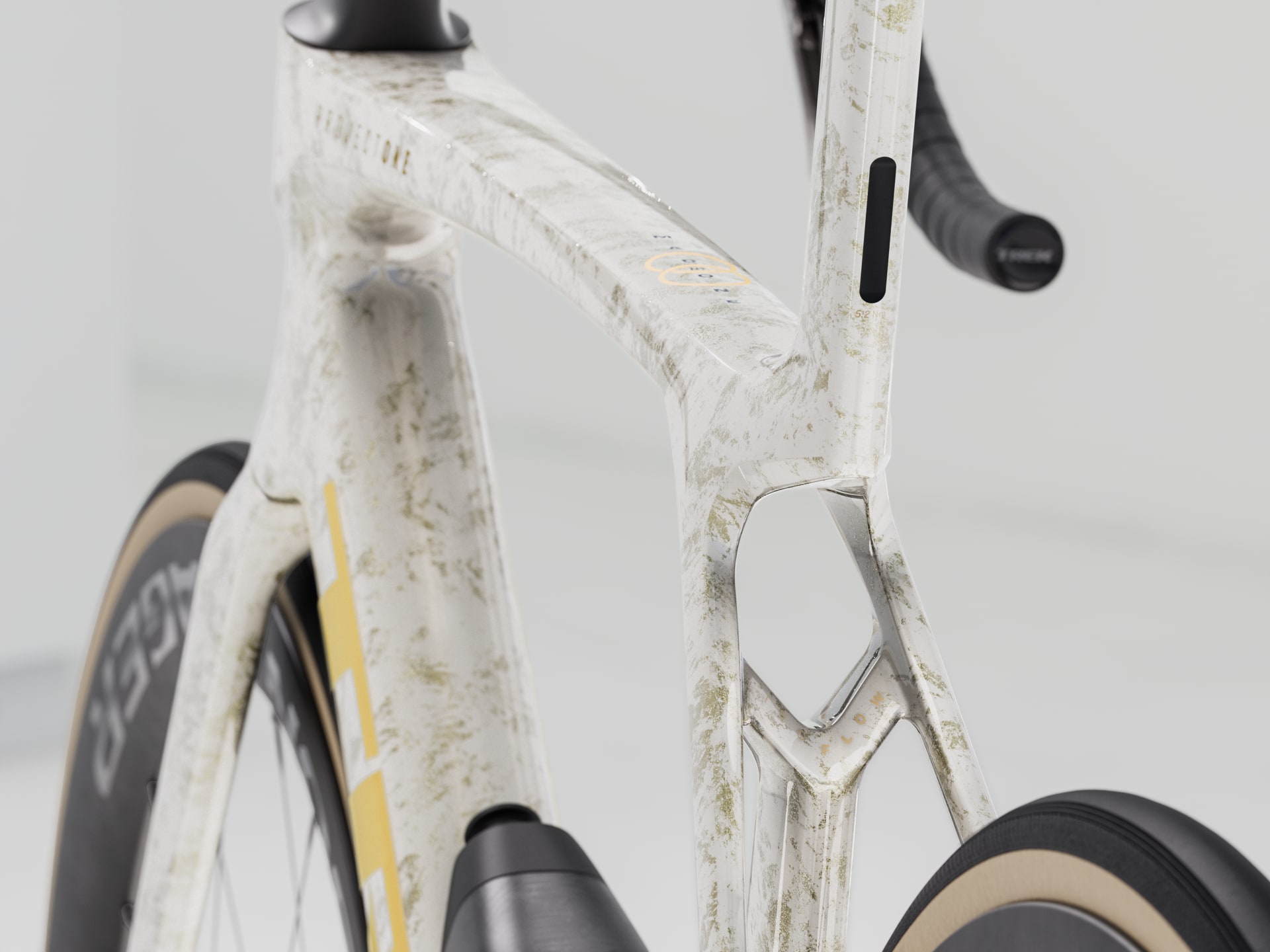

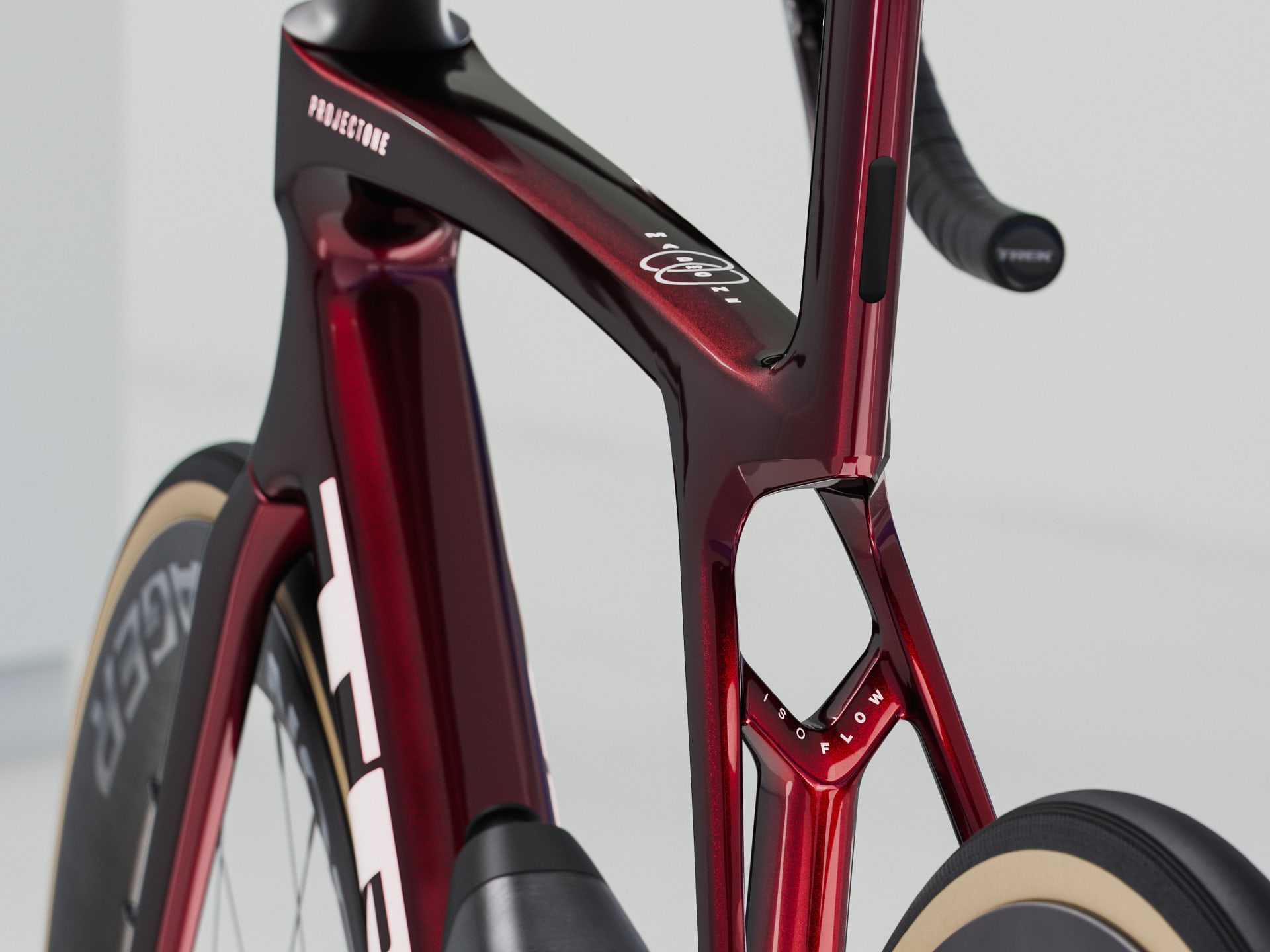

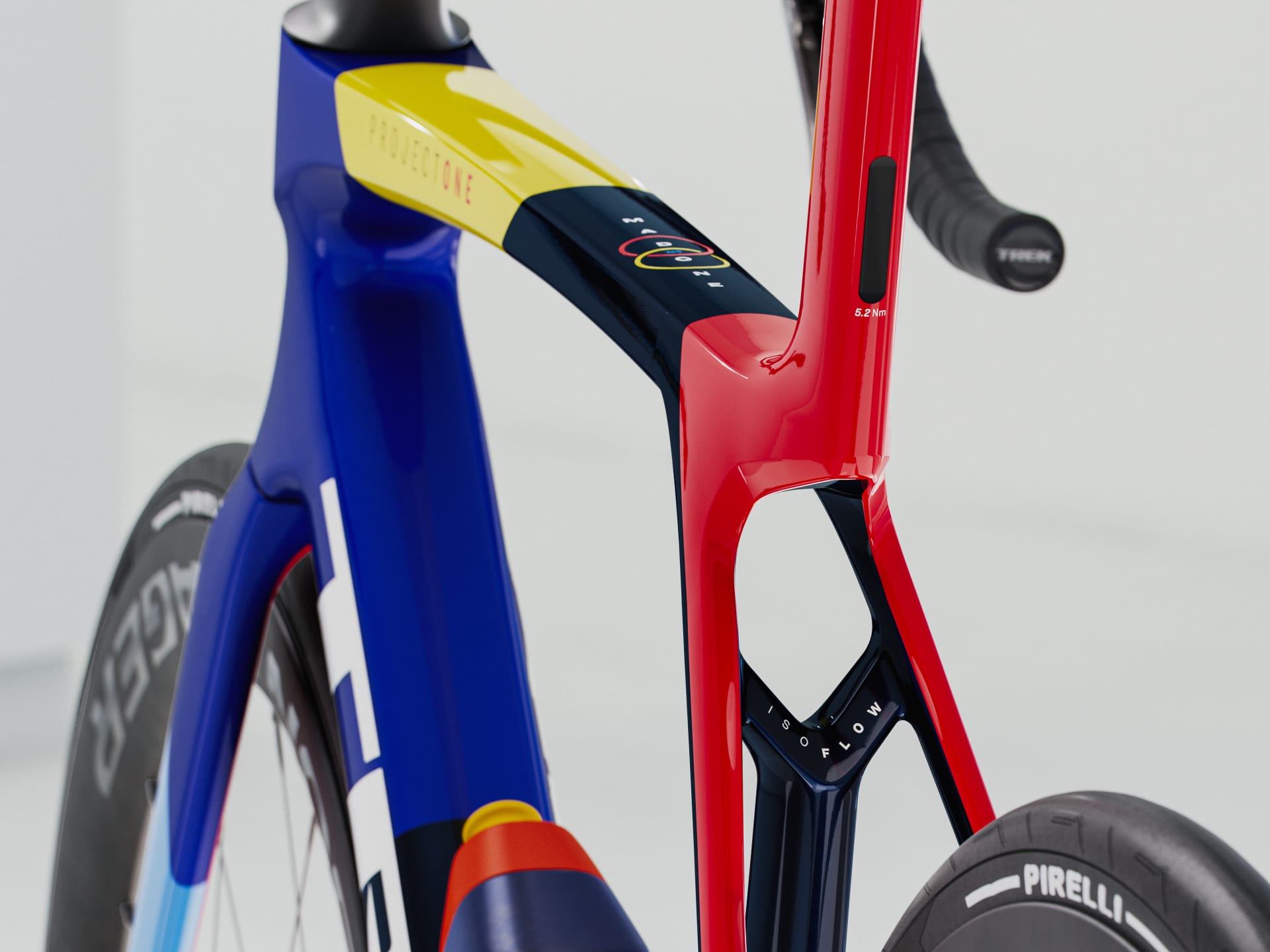

Frame	900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheel front	Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
*Wheel rear	Size: XS, S, M, ML, L, XL Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
*Wheel rear	Size: XS, S, M, ML, L, XL Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Tyre	Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Max tyre size	32 mm (as measured, see manual for details)

Battery	SRAM eTap battery pack (with charger)

Shifter	SRAM Force AXS D2, 12-speed
Front derailleur	SRAM Force AXS D2, braze-on
Rear derailleur	SRAM Force AXS D2, 36T max cog

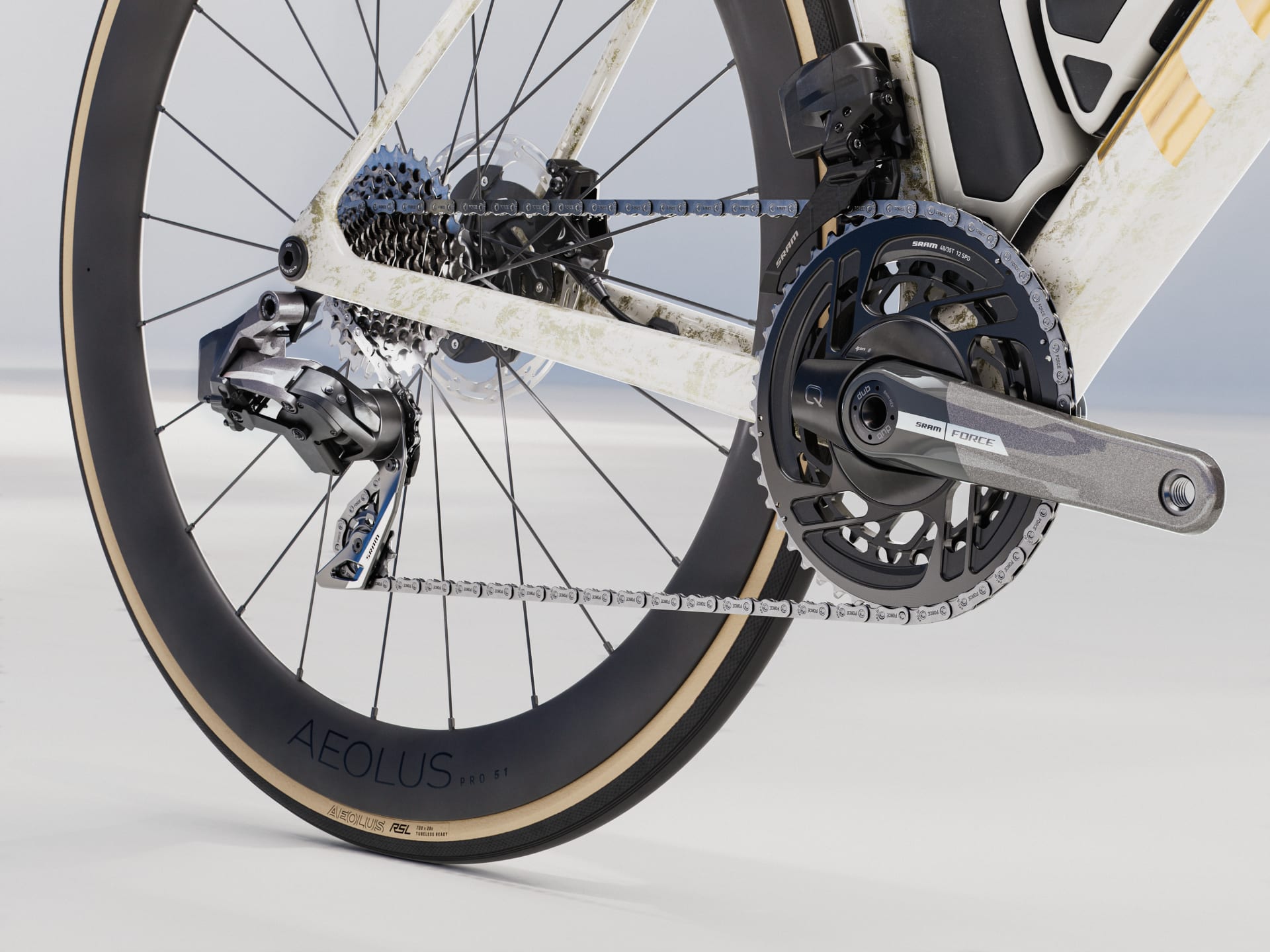

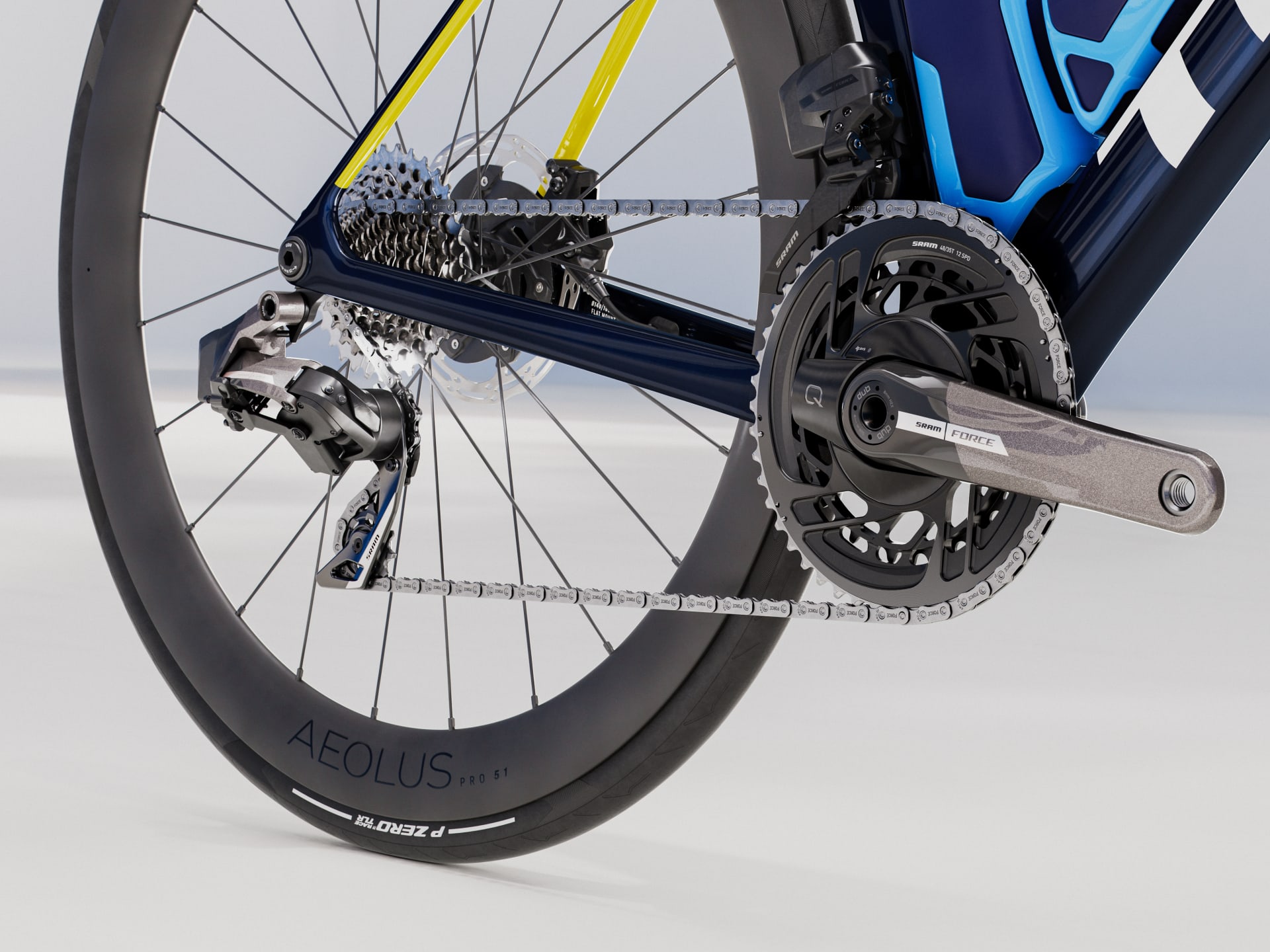

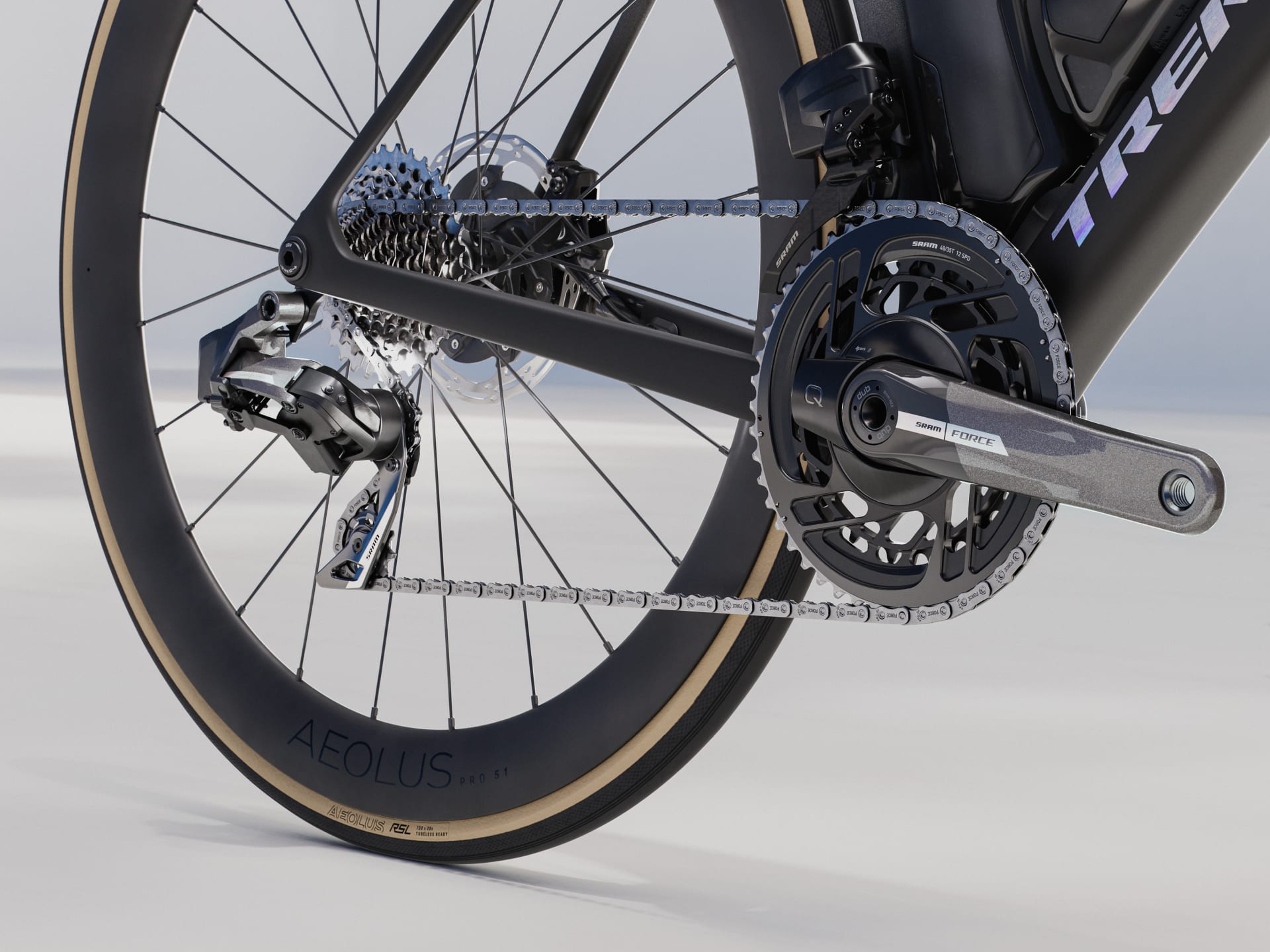

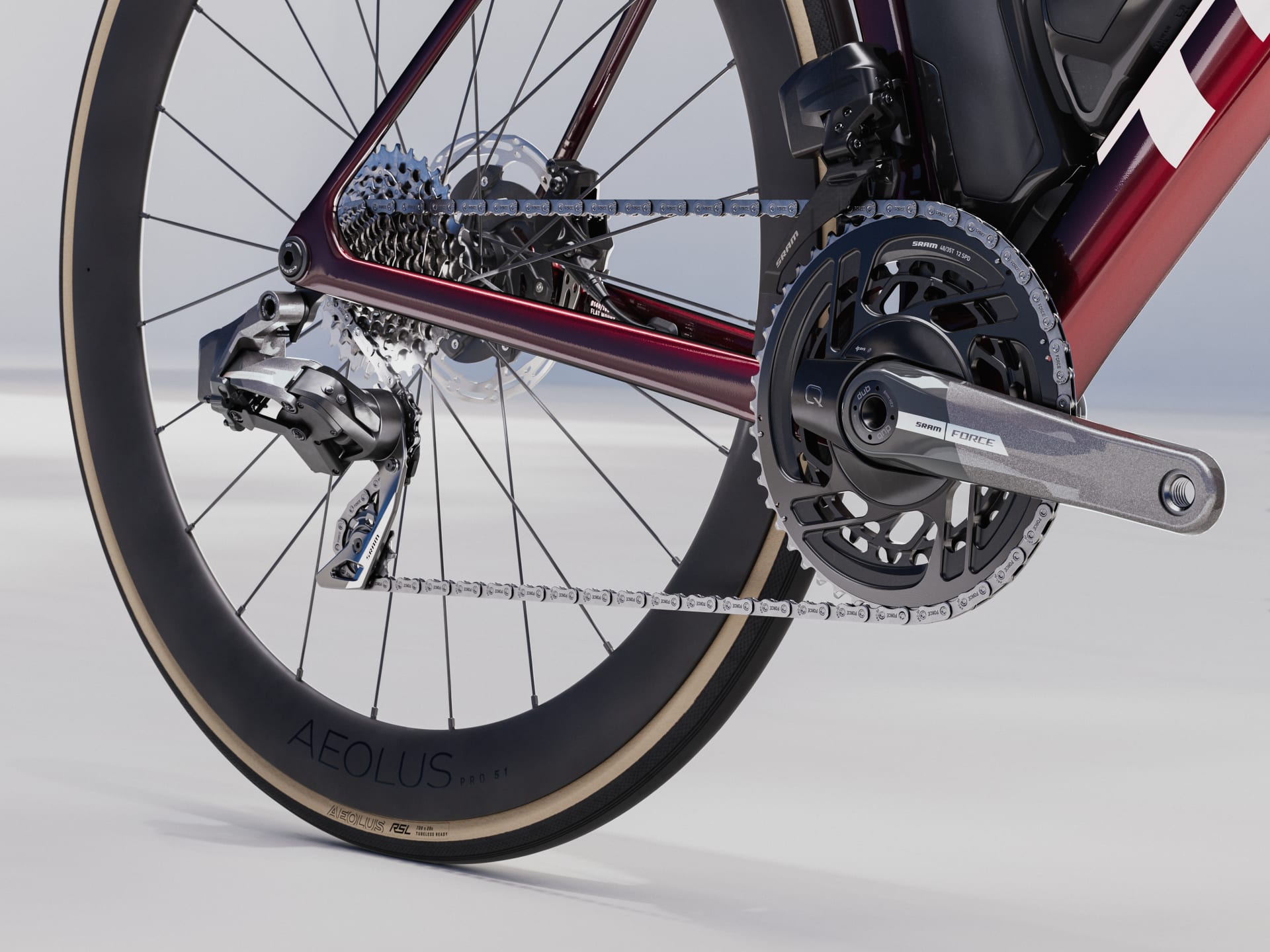

*Crank	Size: XS, S SRAM Force AXS D2, power meter, 48/35, DUB, 165 mm length
	Size: M SRAM Force AXS D2, power meter, 48/35, DUB, 170 mm length
	Size: ML, L SRAM Force AXS D2, power meter, 48/35, DUB, 172.5 mm length
	Size: XL SRAM Force AXS D2, power meter, 48/35, DUB, 175 mm length
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM Force XG-1270, 10-33, 12 speed
Chain	SRAM Force, 12-speed
Max. chainring size	1x: 54T, 2x: 56/43

*Saddle	Size: XS, S Bontrager Aeolus P2 Pro, carbon rails, 155 mm width
*Saddle	Size: M, ML, L, XL Bontrager Aeolus Pro, carbon rails, 145 mm width
*Seatpost	Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length
*Seatpost	Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length

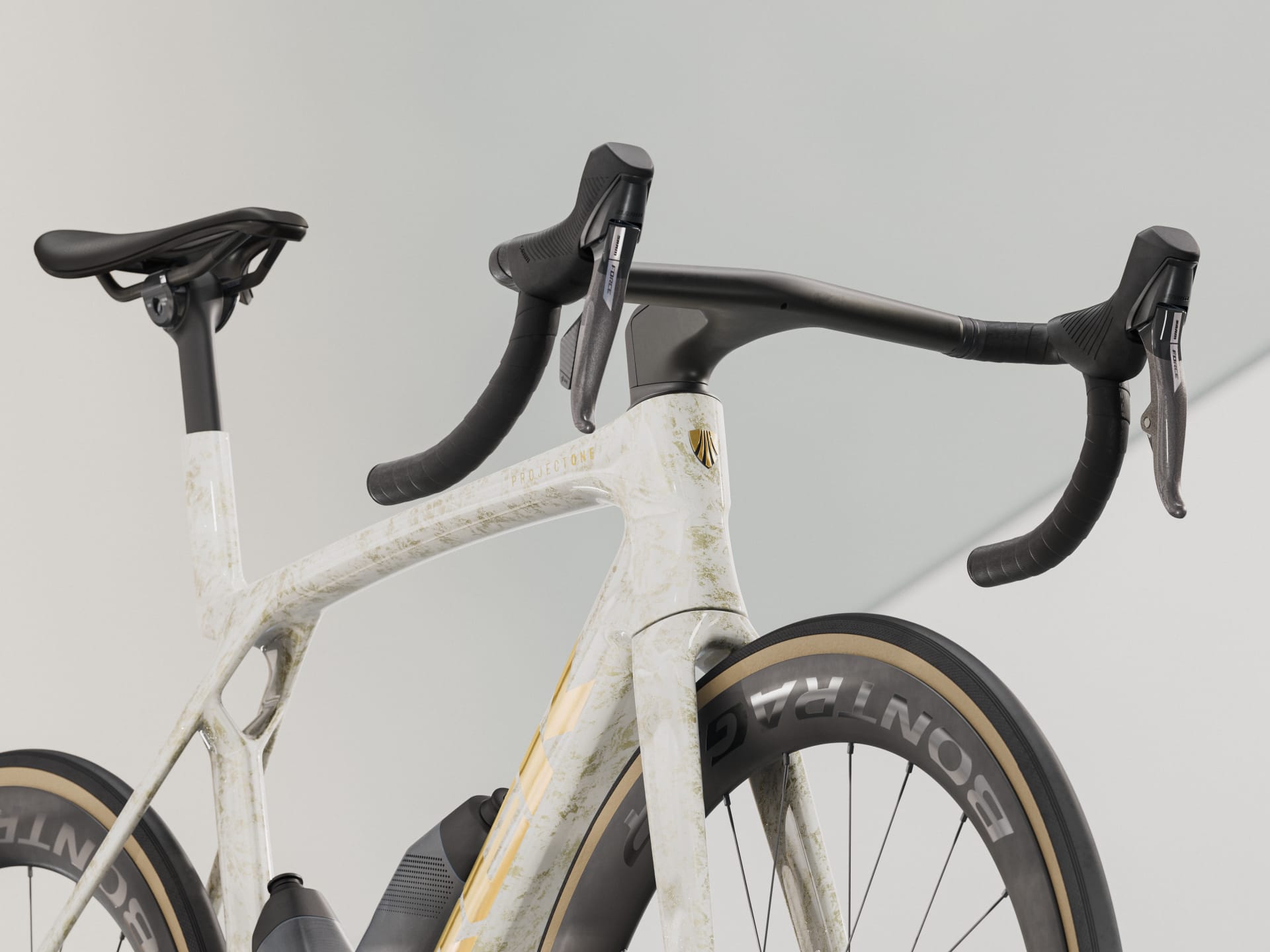

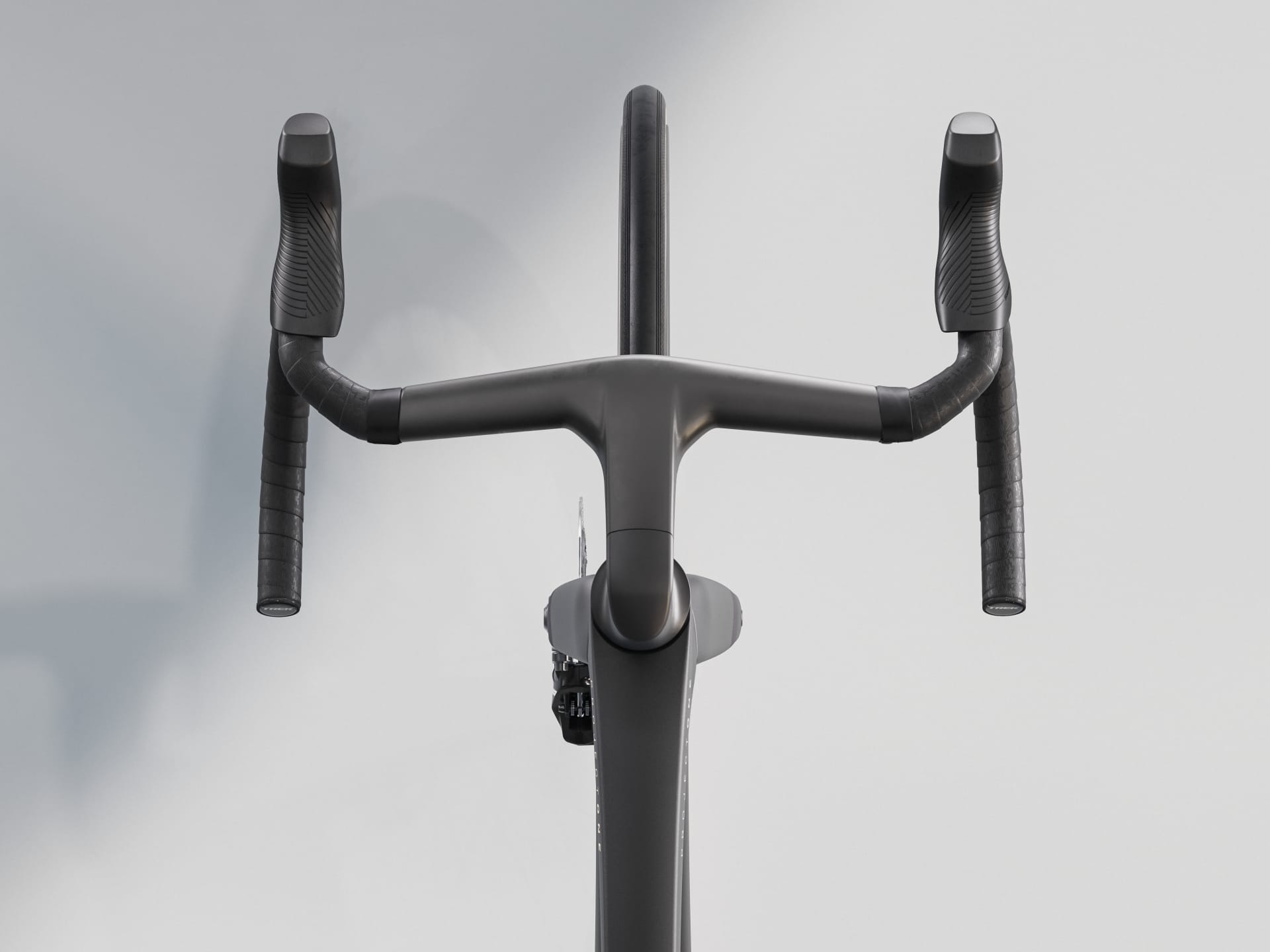

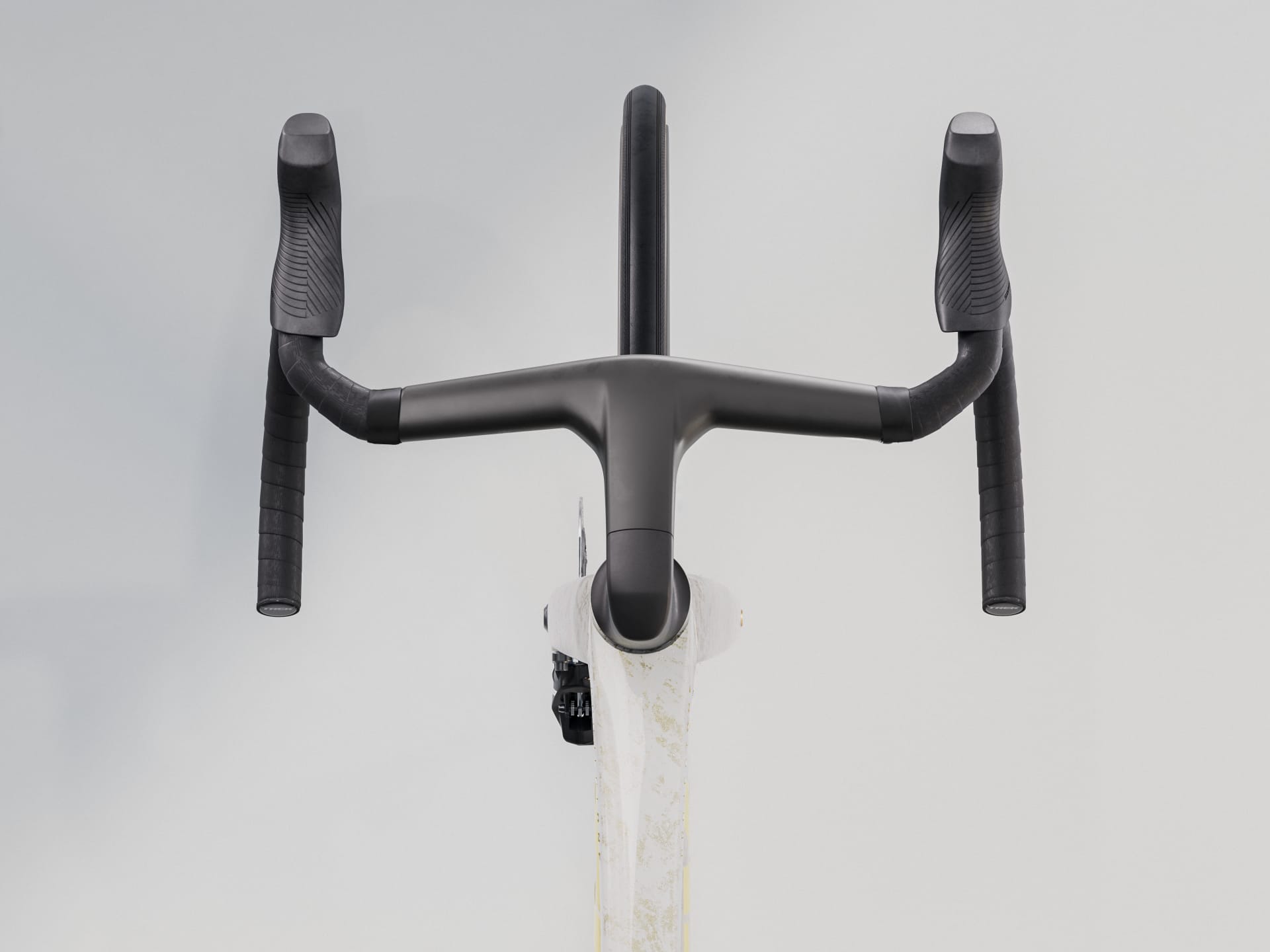

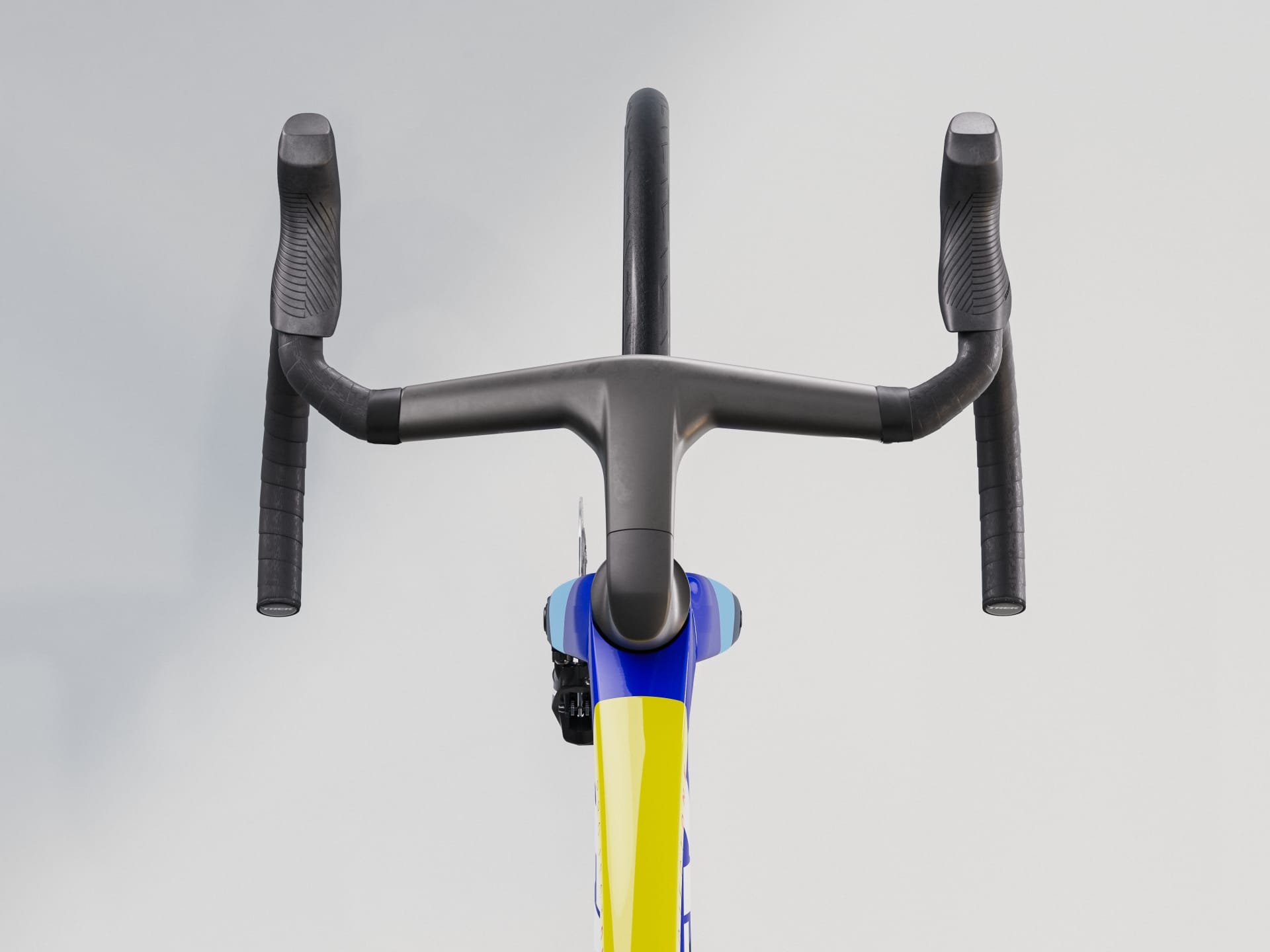

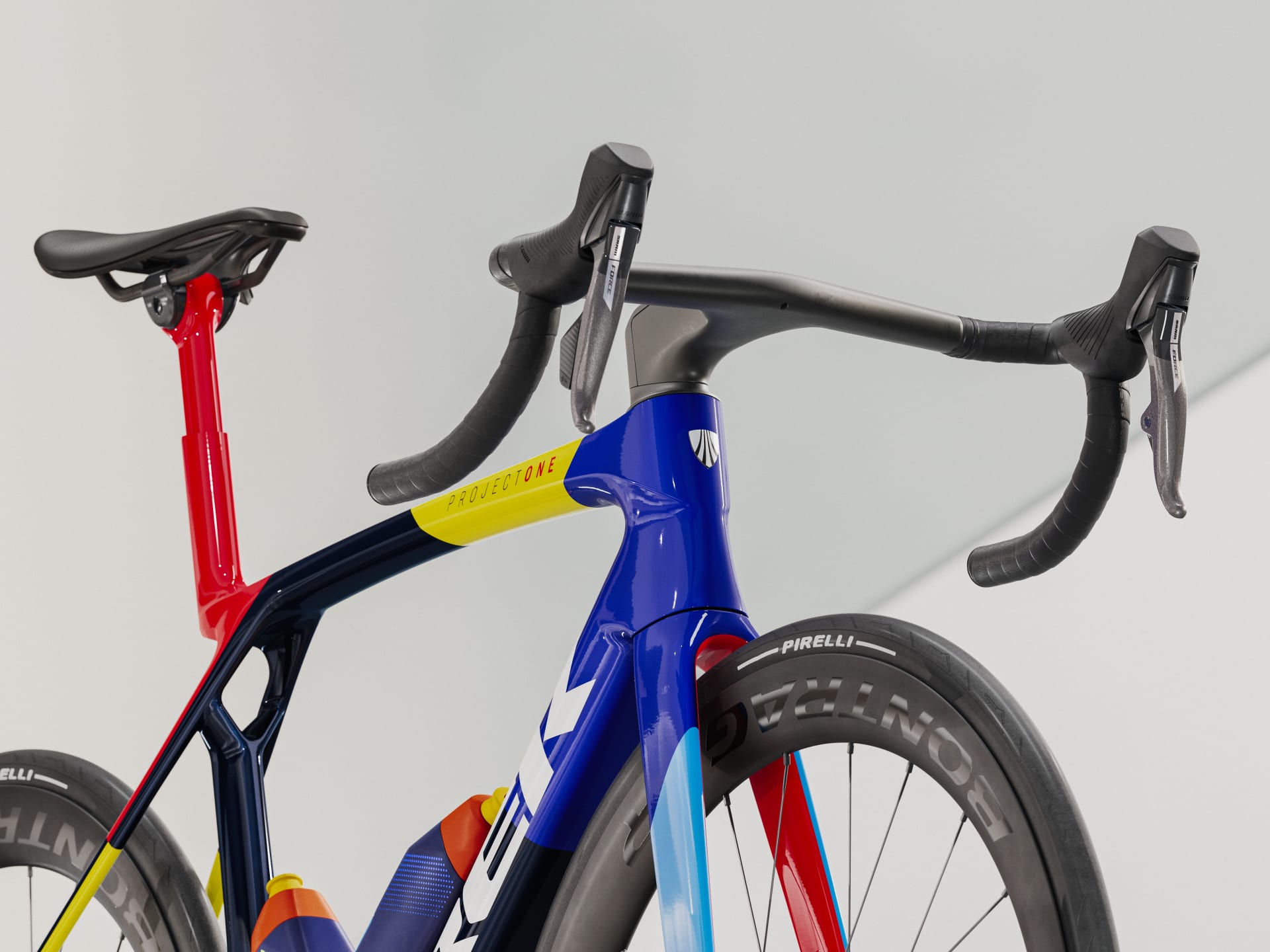

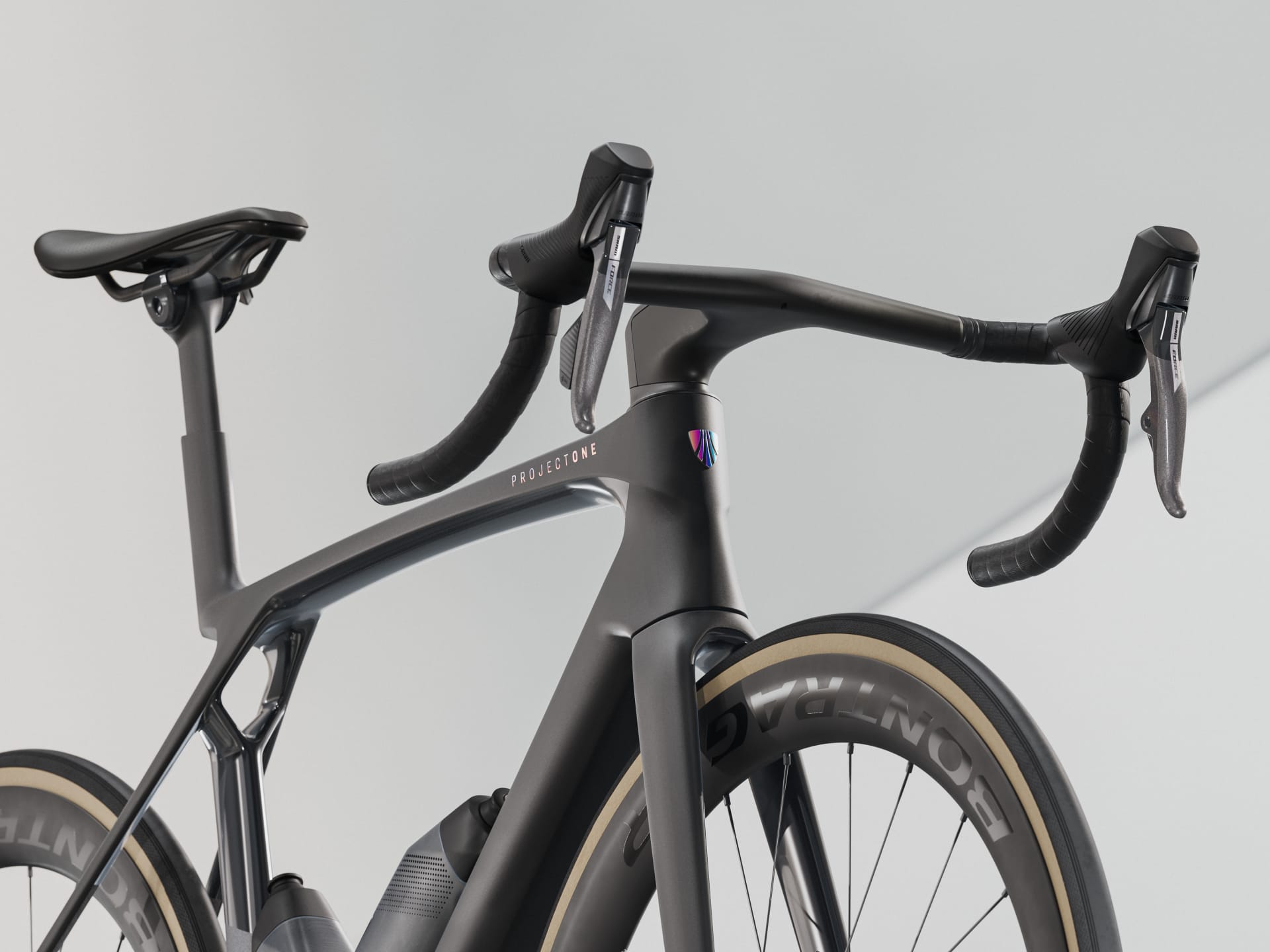

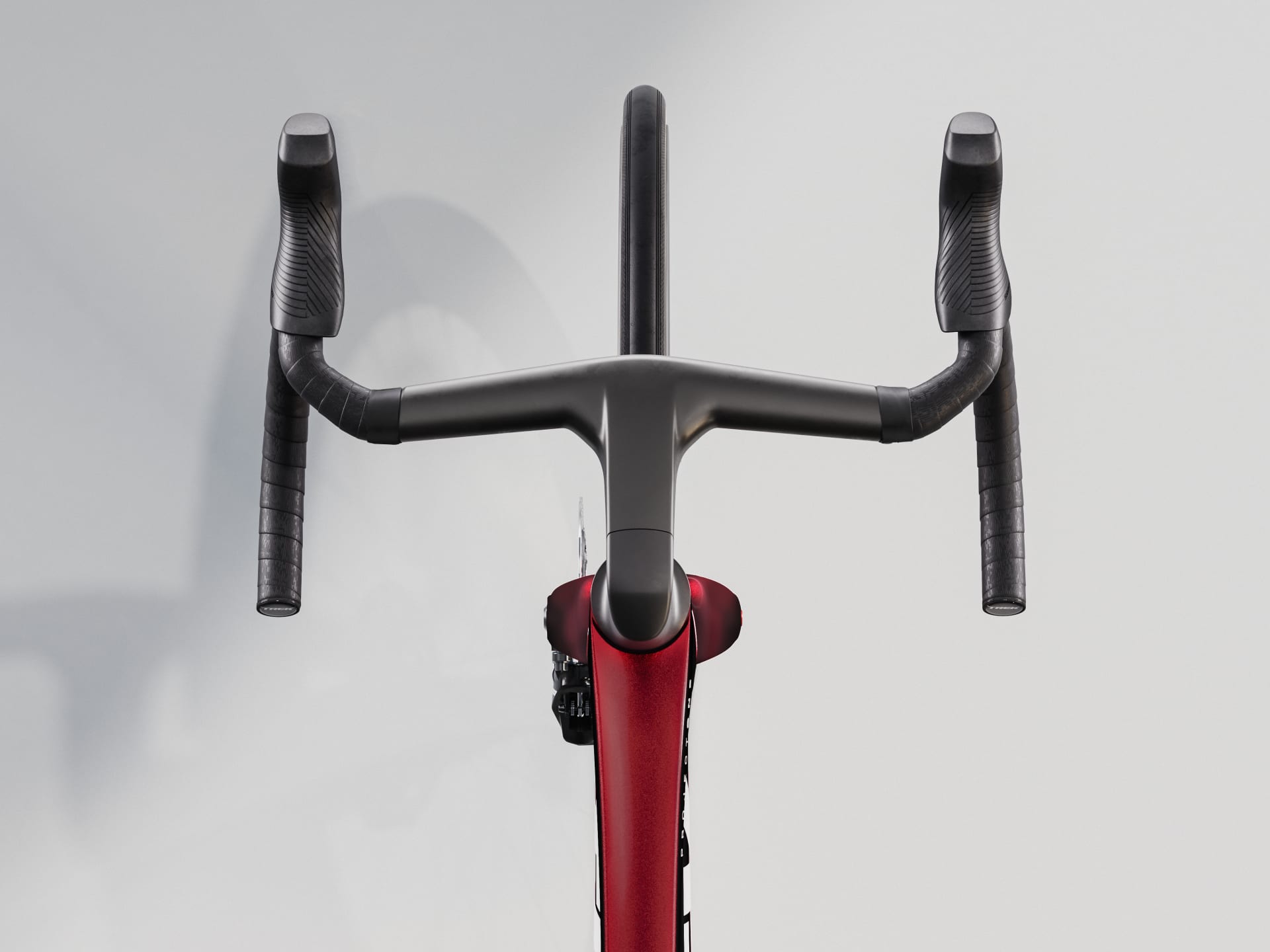

*Handlebar/stem (integrated)	Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
	Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
	Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
	Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
	Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Brake rotor	SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size	Max brake rotor sizes: 180 mm front, 160 mm rear

Weight	ML - 7.43 kg / 16.39 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
