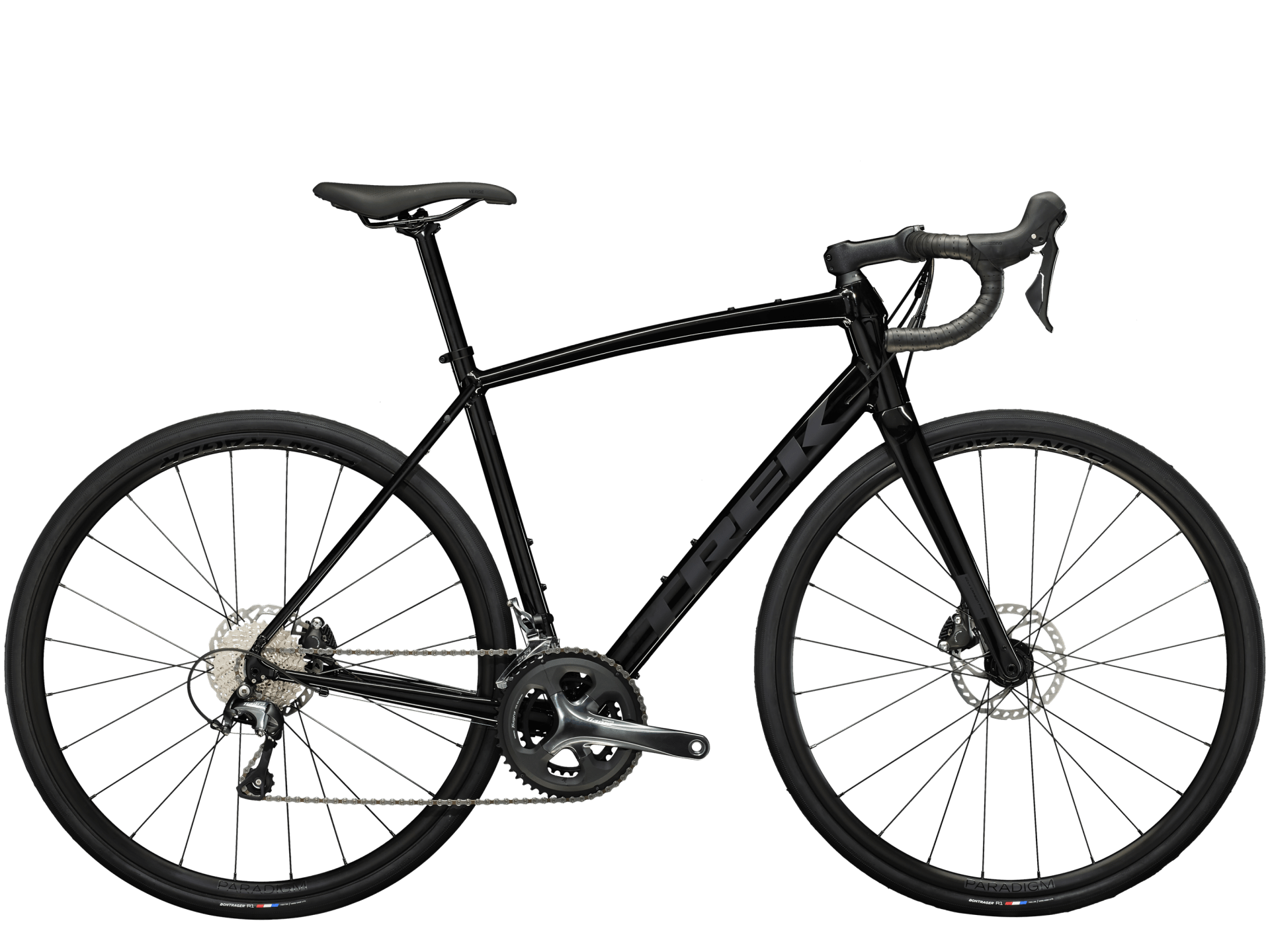

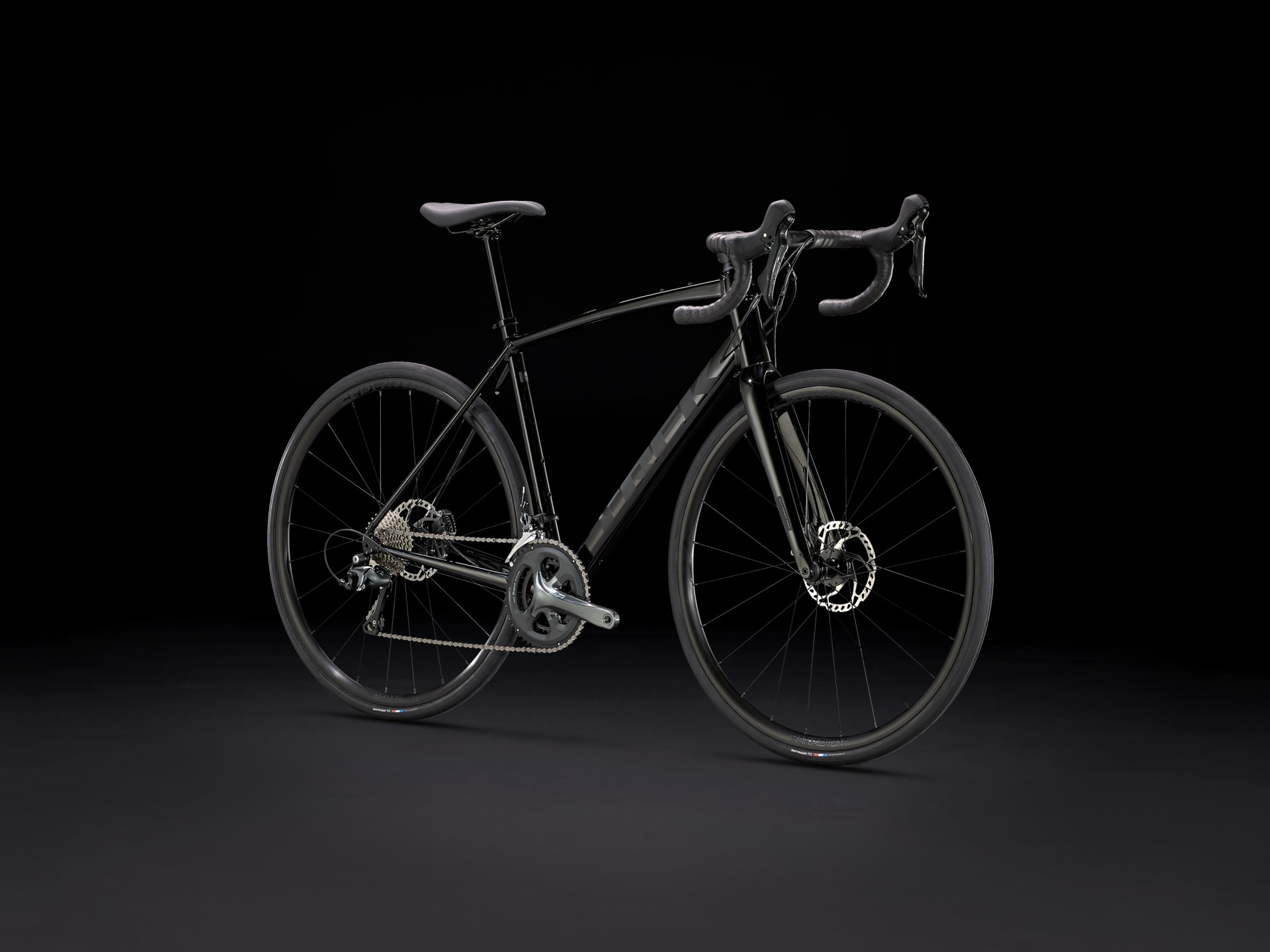

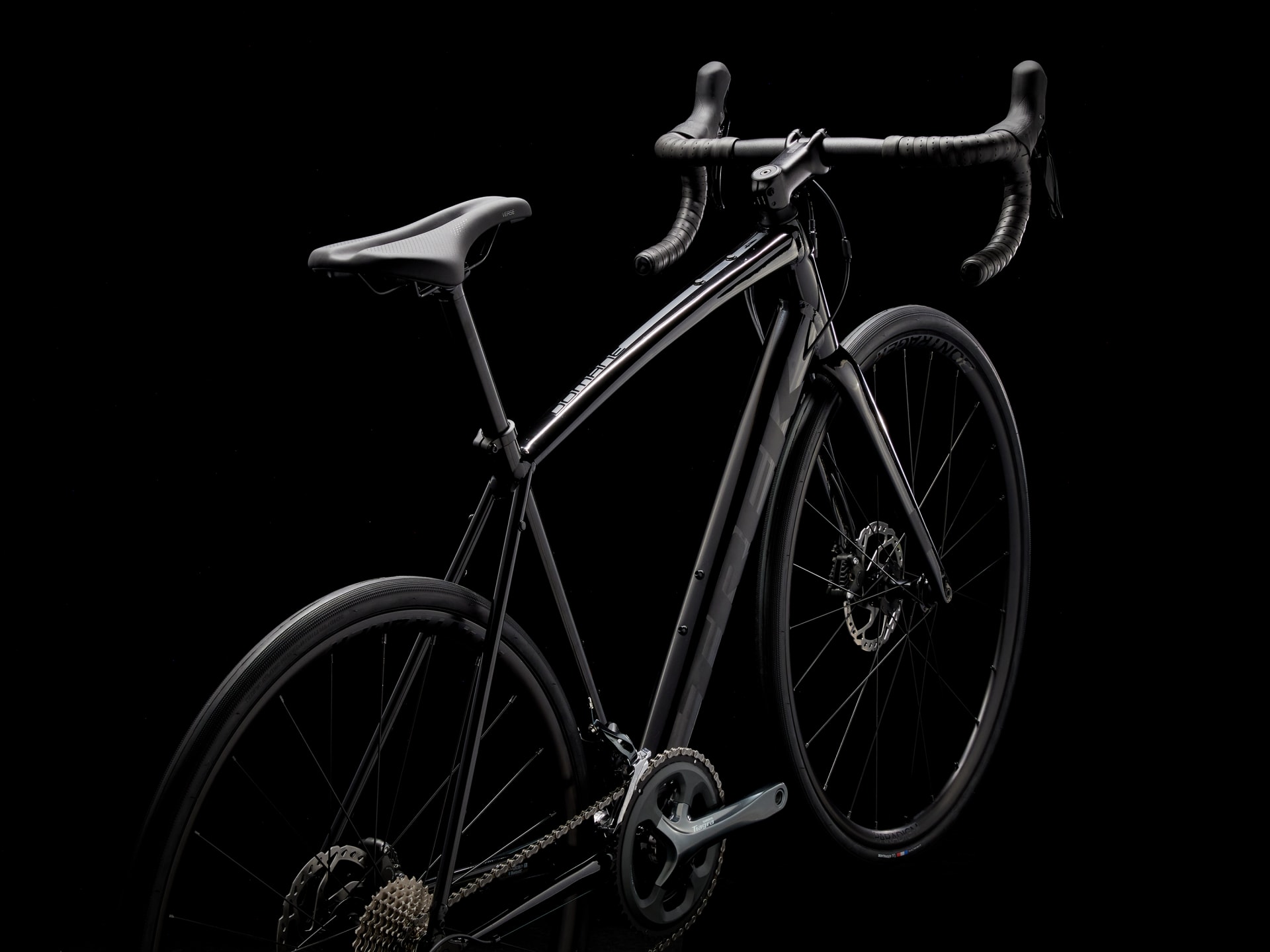

TREK Domane AL 4 Disc

Mô tả
Chính sách
Đánh giá

TREK Domane AL 4 Disc kết hợp chất lượng mượt mà, thoải mái của khung hợp kim tiên tiến với hiệu suất của các bộ phận chất lượng cao hơn. Nó có hệ thống truyền động được nâng cấp và phanh đĩa thủy lực sắc nét để tạo ra một chiếc xe đạp đường trường tốc độ hoàn hảo cho các cuộc đua theo nhóm cạnh tranh và thậm chí là các cuộc đua.

THÔNG SỐ KỸ THUẬT

*Please note - spec applies to all sizes unless listed separately

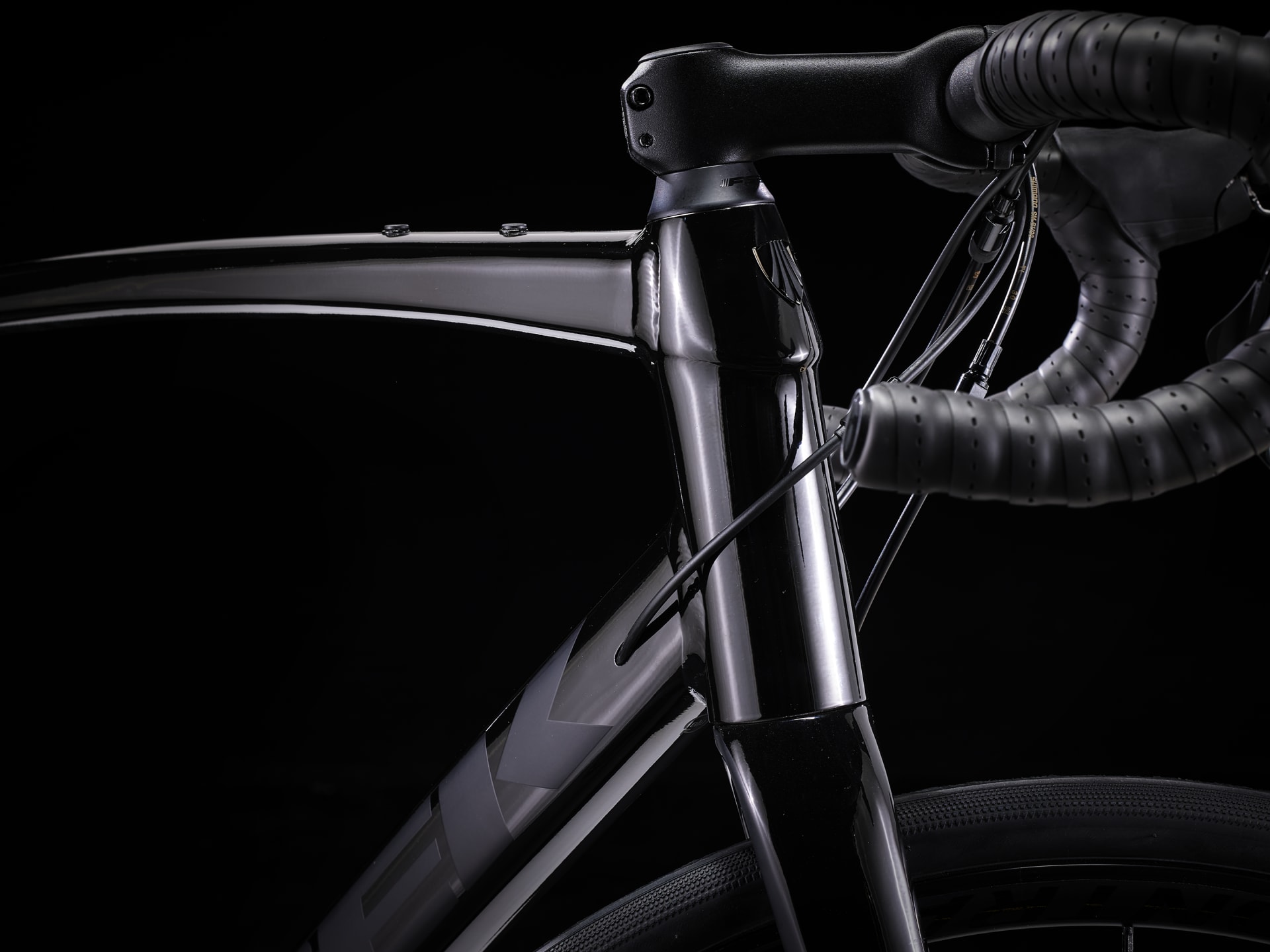

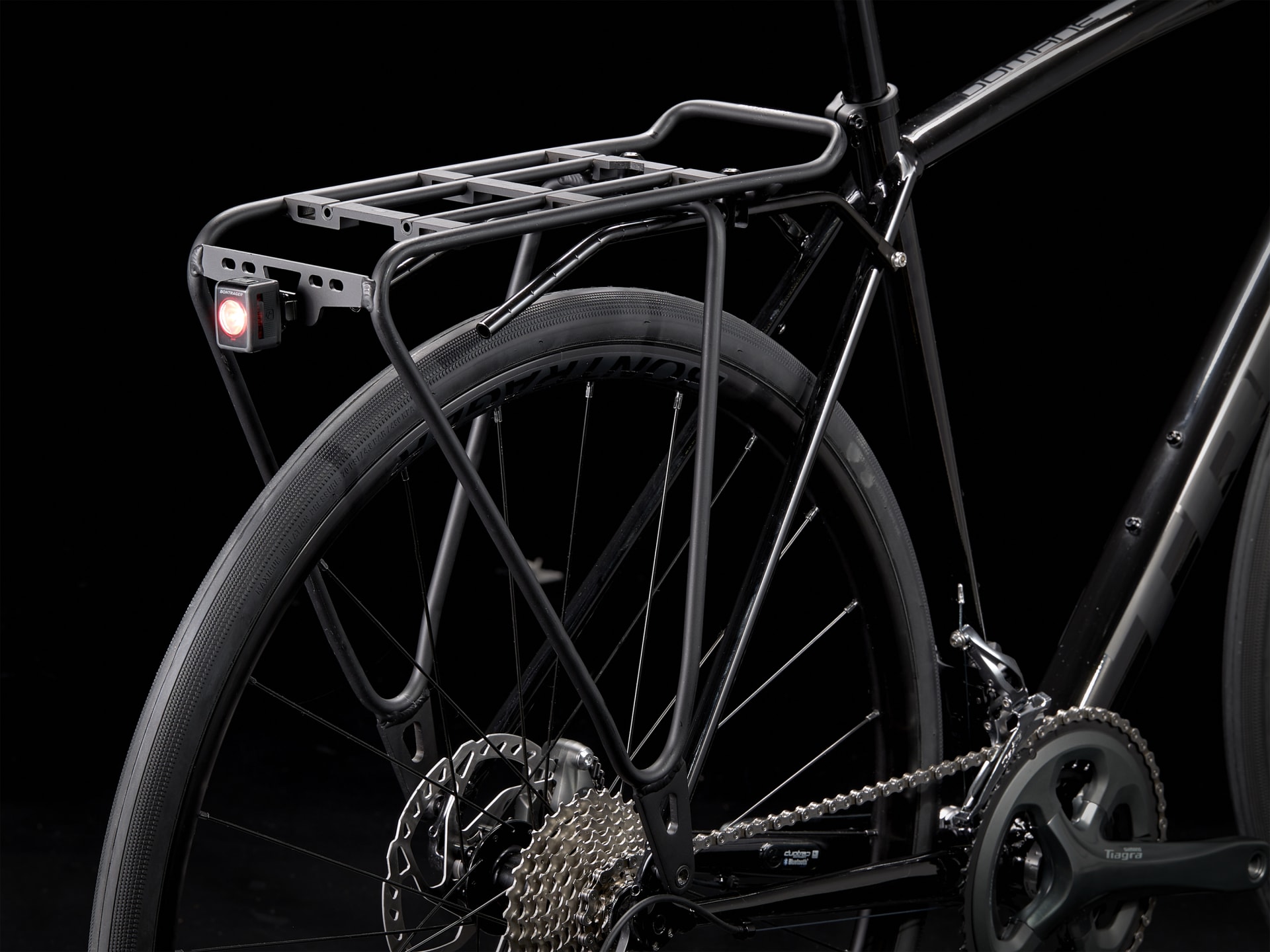

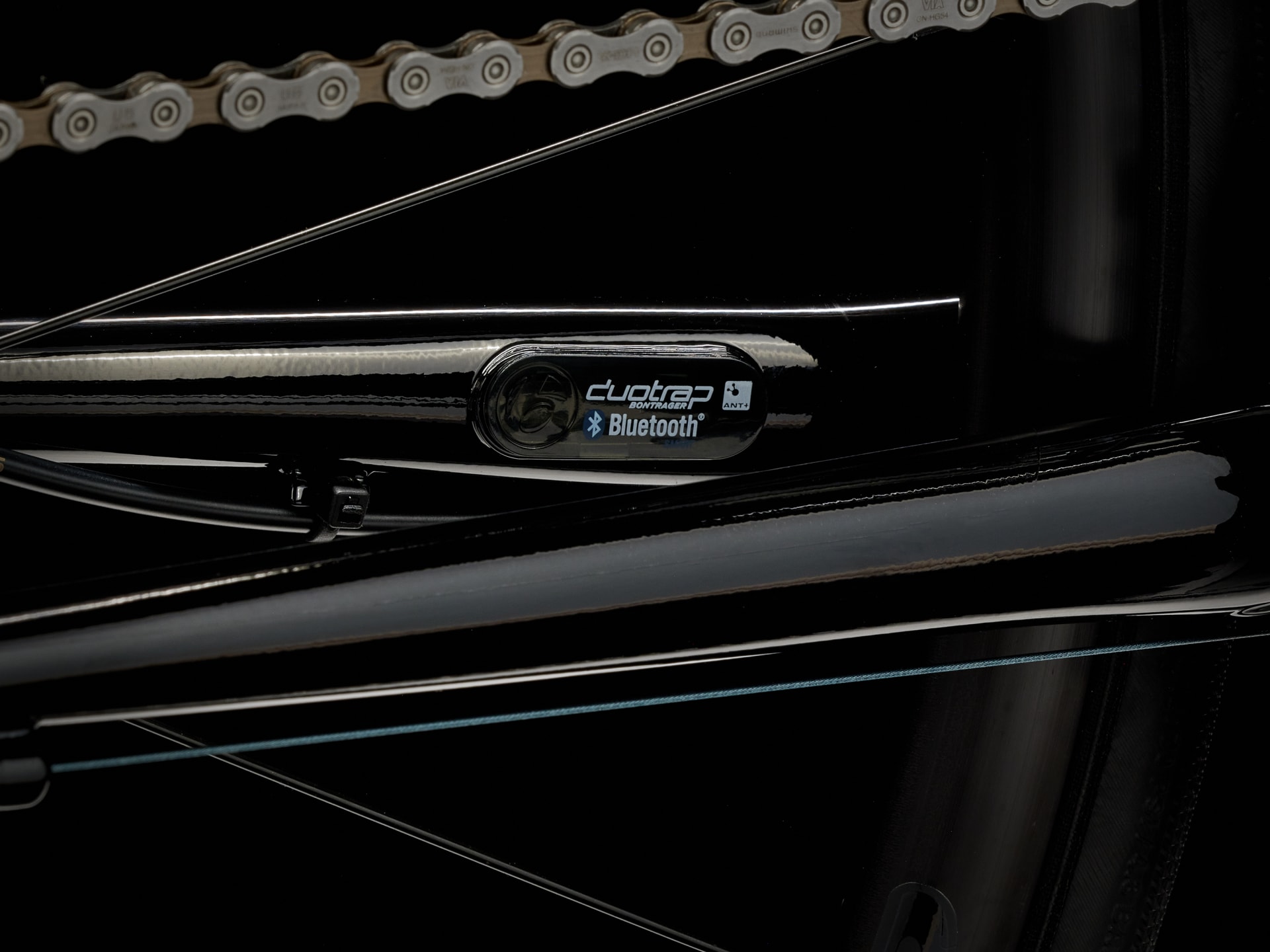

Frame	100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork	Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit	Endurance

Weight	56 - 10.45 kg / 23.04 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter	Shimano Tiagra R4725, short reach lever, 10 speed
Front derailleur	Shimano Tiagra 4700, 31.8mm clamp
Rear derailleur	Shimano Tiagra 4700, long cage, 34T max cog

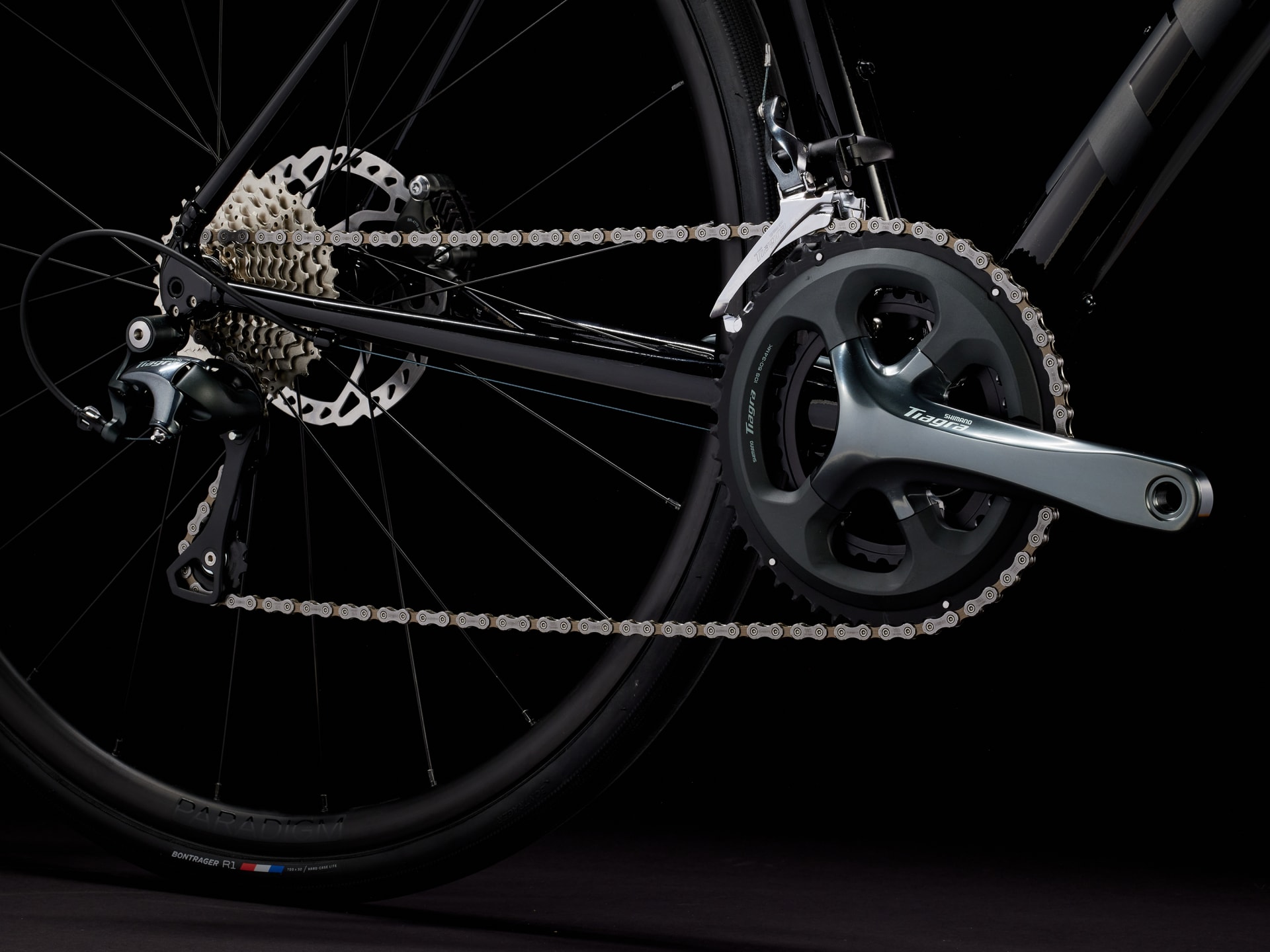

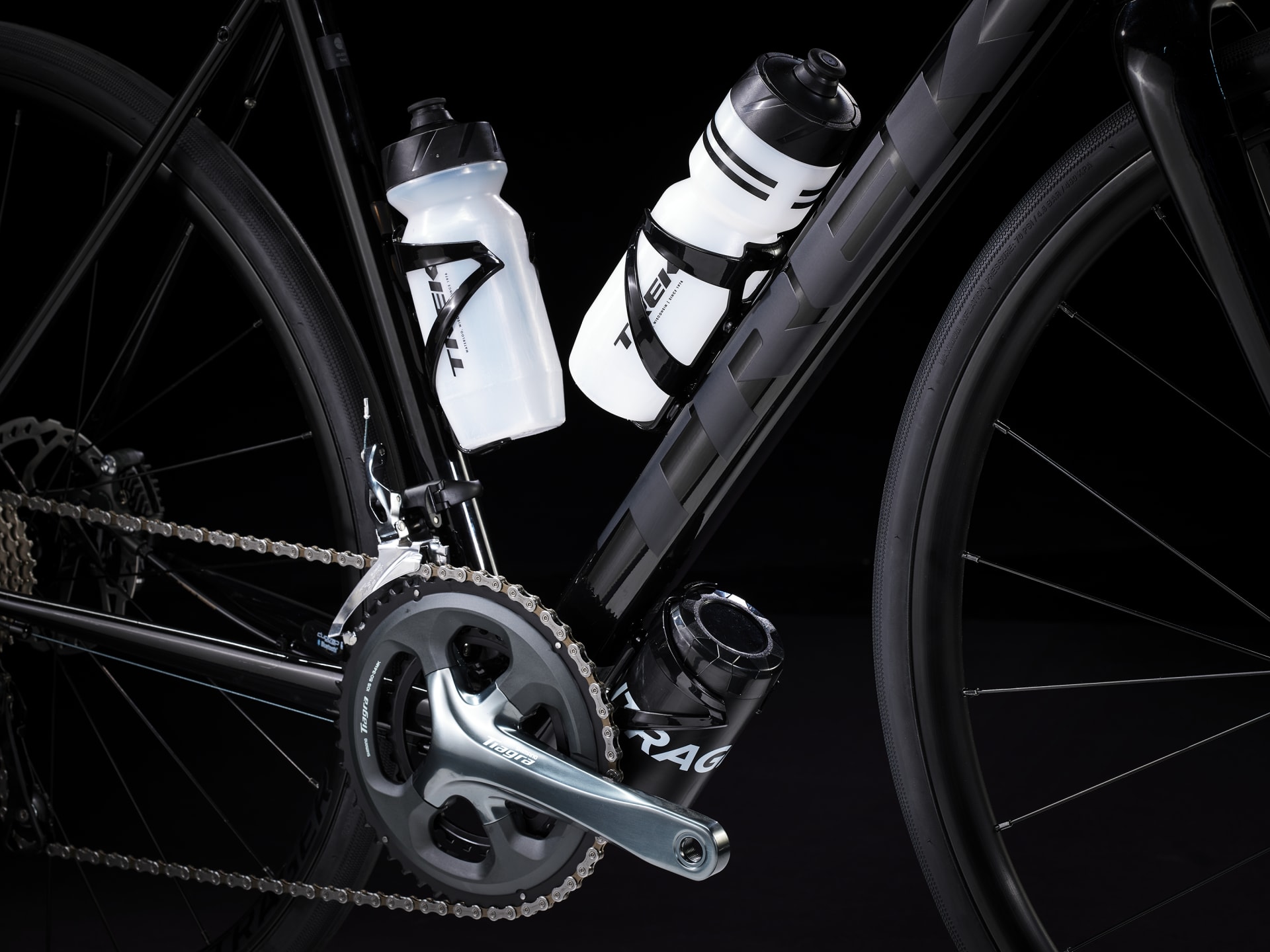

*Crank	Size: 44 Shimano Tiagra 4700, 50/34, 165mm length
	Size: 49, 52 Shimano Tiagra 4700, 50/34, 170mm length
	Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5mm length
	Size: 58, 61 Shimano Tiagra 4700, 50/34, 175mm length
Bottom bracket	Shimano RS500, 68mm, threaded external
Cassette	Shimano HG500, 11-32, 10 speed
Chain	Shimano Tiagra HG54, 10 speed
Max chainring size	1x: 42T, 2x: 50/34

Hub front	Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
*Rim	Size: 44, 49, 52, 54, 56, 58, 61 Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, Presta valve
*Rim	Size: 44, 49, 52, 54, 56, 58, 61 Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Max tire size	35mm without fenders, 32mm with fenders

*Saddle	Size: 44, 49, 52 Bontrager Verse Comp, steel rails, 155mm width
*Saddle	Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145mm width
*Seatpost	Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
*Seatpost	Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

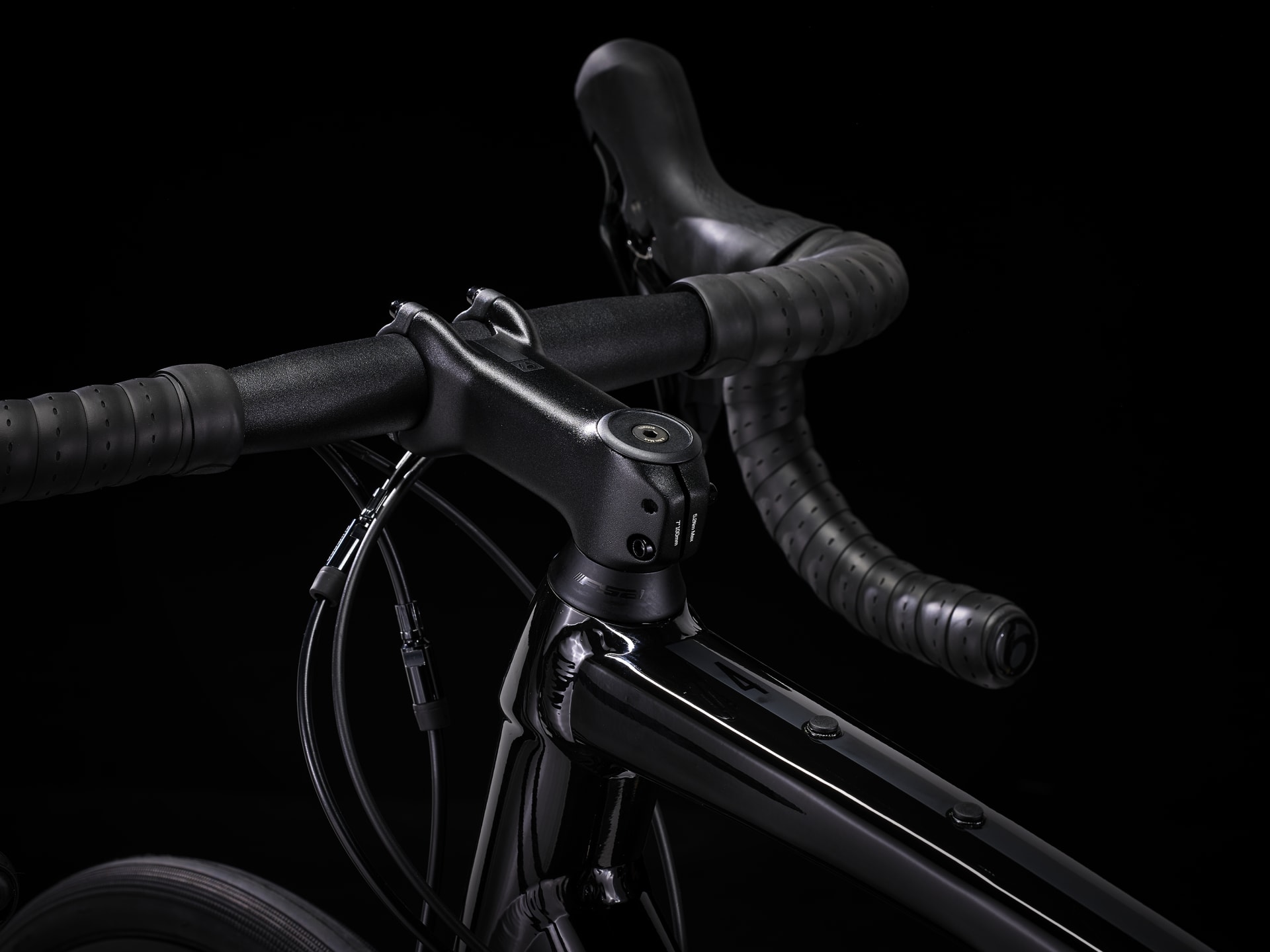

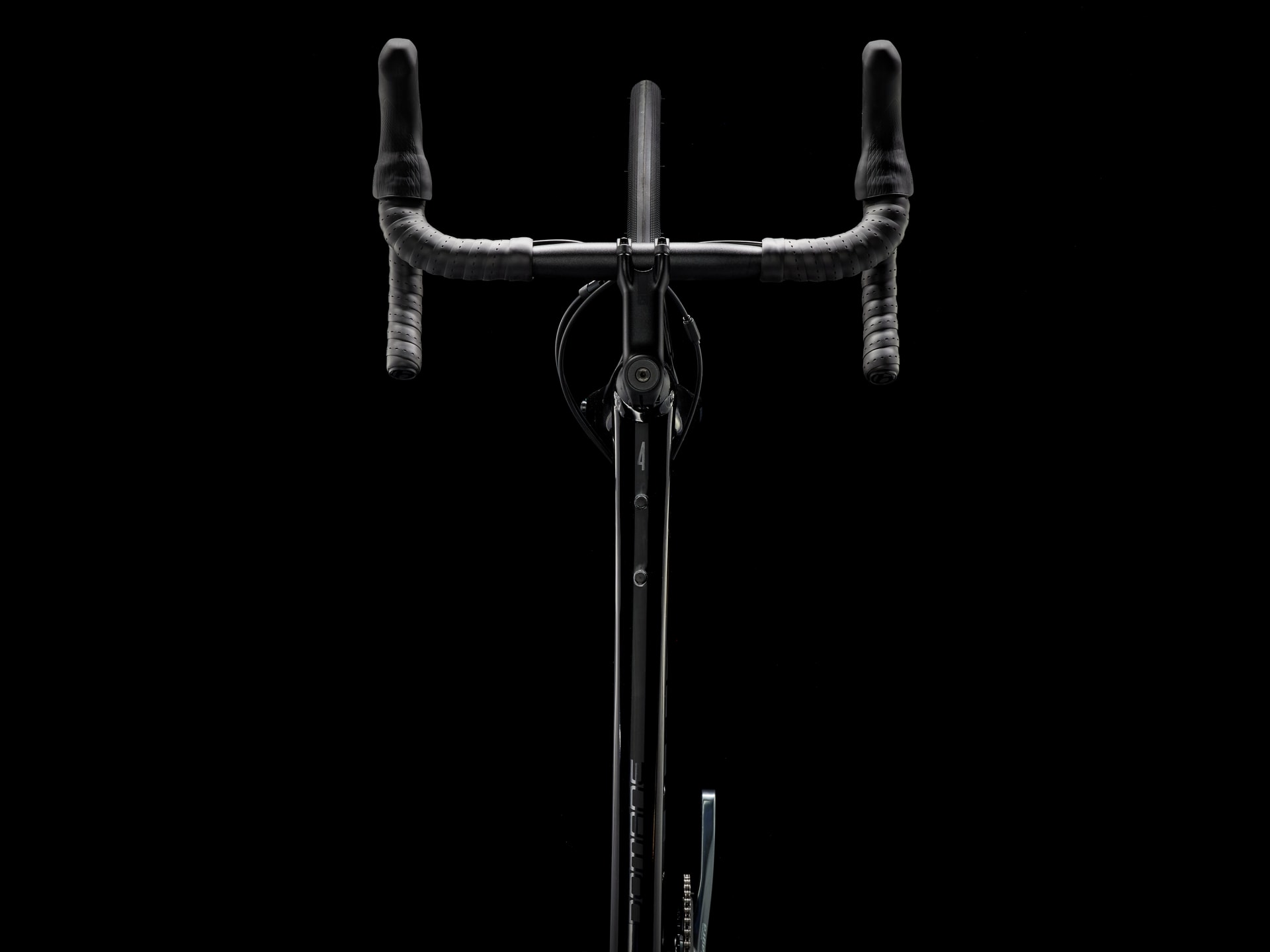

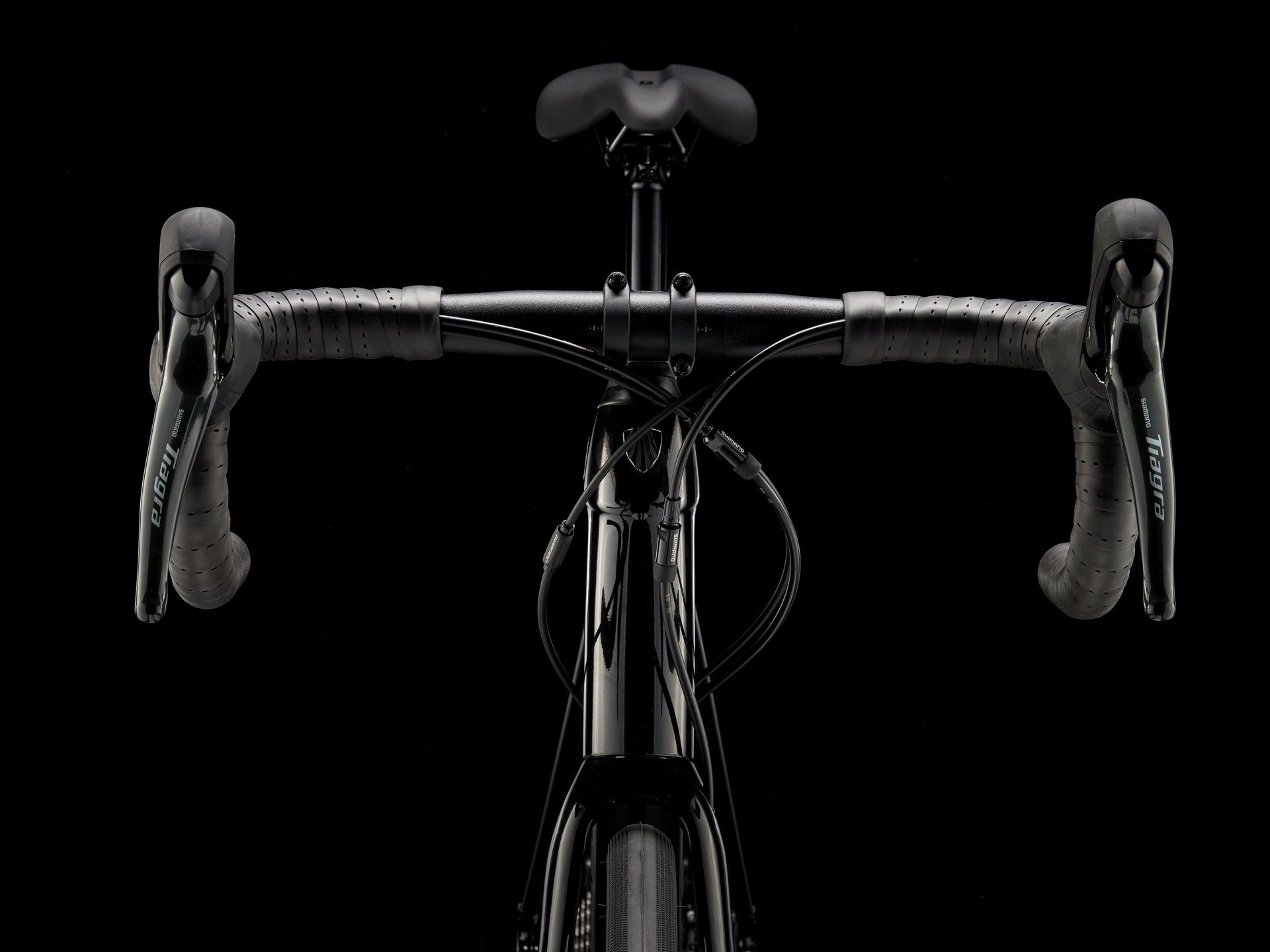

*Handlebar	Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
	Size: 52 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
	Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
	Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 44 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
	Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
	Size: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Headset	FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
*Brake	Size: 44, 49, 52, 54, 56, 58, 61 Shimano Tiagra hydraulic disc
*Brake	Size: 44, 49, 52, 54, 56, 58, 61 Shimano Tiagra hydraulic disc, flat mount
Brake rotor	Shimano RT66, 6-bolt, 160mm

CHỌN KÍCH CỠ

Size	Rider Height	Inseam
44	150 - 153 cm 4'11" - 5'0"	71 - 73 cm 28" - 29"
49	156 - 163 cm 5'1" - 5'4"	74 - 77 cm 29" - 30"
52	163 - 168 cm 5'4" - 5'6"	76 - 79 cm 30" - 31"
54	168 - 174 cm 5'6" - 5'9"	78 - 82 cm 31" - 32"
56	174 - 180 cm 5'9" - 5'11"	81 - 85 cm 32" - 33"
58	180 - 185 cm 5'11" - 6'1"	84 - 87 cm 33" - 34"
61	185 - 191 cm 6'1" - 6'3"	86 - 90 cm 34" - 35"

Size

Rider Height

Inseam

150 - 153 cm

4'11" - 5'0"

71 - 73 cm

28" - 29"

156 - 163 cm

5'1" - 5'4"

74 - 77 cm

29" - 30"

163 - 168 cm

5'4" - 5'6"

76 - 79 cm

30" - 31"

168 - 174 cm

5'6" - 5'9"

78 - 82 cm

31" - 32"

174 - 180 cm

5'9" - 5'11"

81 - 85 cm

32" - 33"

180 - 185 cm

5'11" - 6'1"

84 - 87 cm

33" - 34"

185 - 191 cm

6'1" - 6'3"

86 - 90 cm

34" - 35"

KÍCH THƯỚC

All measurements provided in cm unless otherwise noted.

Sizing table
Frame size number	Wheel size	A — Seat tube	B — Seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack	Stem length
44 cm	700c	39.0	74.6°	9.5	70.3°	50.7	8.0	42.0	5.3	6.6	98.3	65.7	36.0	51.0	70.0

49 cm	700c	44.0	74.6°	12.3	70.8°	51.6	8.0	42.5	5.3	6.6	100.1	71.7	36.8	54.0	80.0

52 cm	700c	47.5	74.2°	14.5	71.3°	53.0	8.0	42.0	5.3	5.9	100.3	73.5	37.1	56.1	90.0

54 cm	700c	50.0	73.7°	16.0	71.3°	54.2	8.0	42.0	5.3	5.9	101.0	75.4	37.4	57.5	90.0

56 cm	700c	52.5	73.3°	17.5	71.9°	55.4	7.8	42.0	4.8	6.1	101.8	77.6	37.7	59.1	100.0

58 cm	700c	54.8	73.0°	19.5	72.0°	56.7	7.8	42.5	4.8	6.0	102.2	79.6	38.0	61.1	100.0

61 cm	700c	57.6	72.7°	23.5	72.1°	58.6	7.5	42.5	4.8	6.3	103.8	84.2	38.5	64.6	110.0
